LED Slēdzis 12-24V 4A, ON-OFF, divi sensori, iegremdējams, plastmasas, balts, durvju/rokas kustību kontrolei
Produkta nr.: IR010
LED Slēdzis 12-24V 4A, ON-OFF, divi sensori, iegremdējams, plastmasas, balts, durvju/rokas kustību kontrolei
Produkta nr.: IR010
Svars | 0.07 kg. |
Piegādes termiņi
Piegāde uz norādīto ar adresi ar kurjeru (ieteicams)
Vairāk par 35,00 € (Pasūtījumi līdz 1000 kilogrami) | Bez maksas |
Līdz 35,00 € (Pasūtījumi līdz 1000 kilogrami) | 3,99 € |
Piegāde uz DPD Paku skapi (ieteicams)
Pēc preču nodošanas kurjeram mēs Jūs informēsim e-pastā. Bezmaksas piegāde pasūtījumiem virs 35 EUR.
2,50 €
Preces apraksts
Svars | 0.07 kg. |

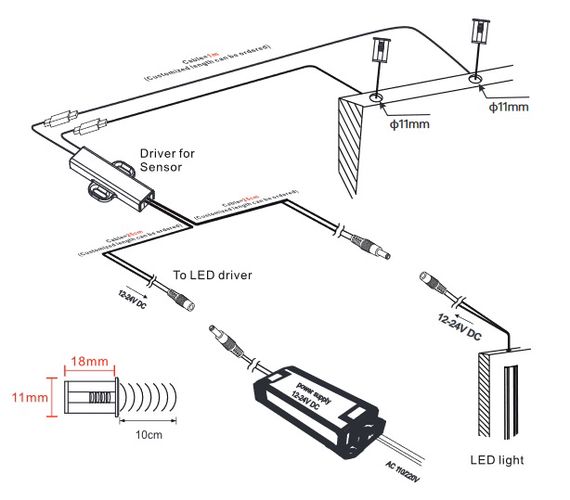

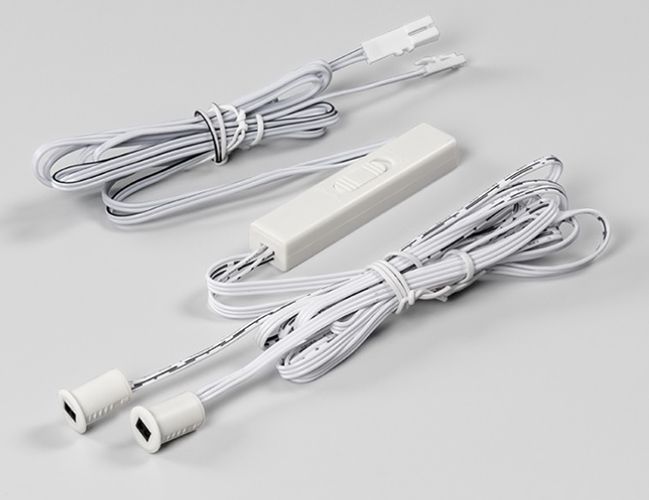

Recessed mount Door/Hand sensor IR010 with two detectors.
Features:
- Door or hand sensing functions - selectable;
- Detection range ≤10cm;
- Automatically swich ON/OFF when open/close the door;
- Automatically swich ON/OFF when the hand pass over;

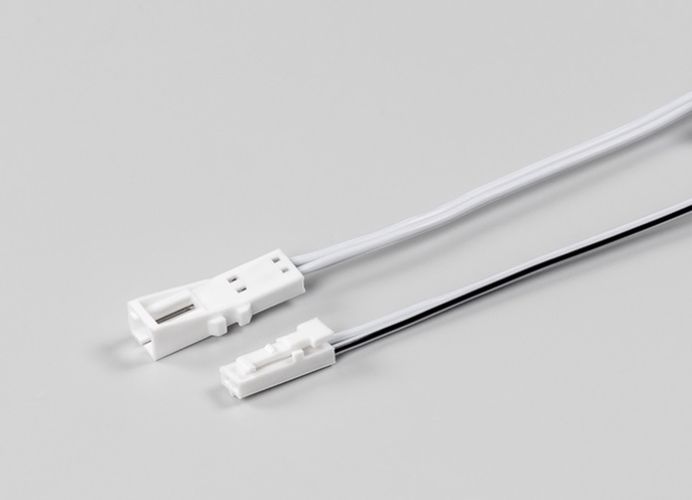

- Cables with connectors included;
Technical specifications:
Input/Output voltage | 12-24V DC |
Input/Output current | 4A |
Power | 48W for 12V; 96W for 24V |
Number of detectors | 2 |
Detection range | ≤10cm |

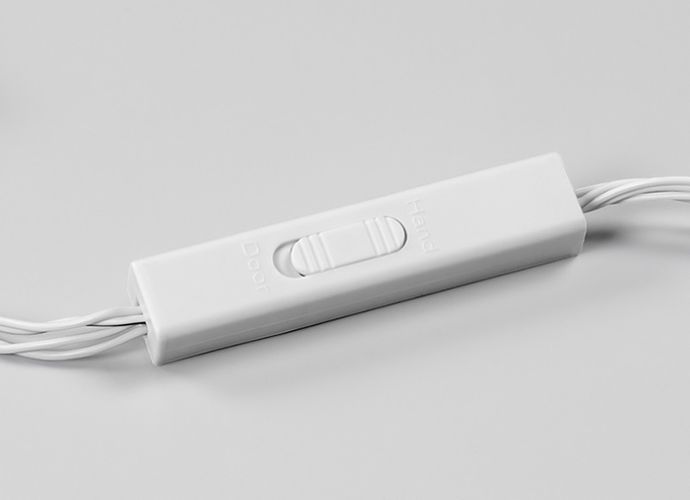

Door/hand function selection | By switch |
Input/Output cable lenght | 25cm |
Sensor cable lenght | 1,0m |

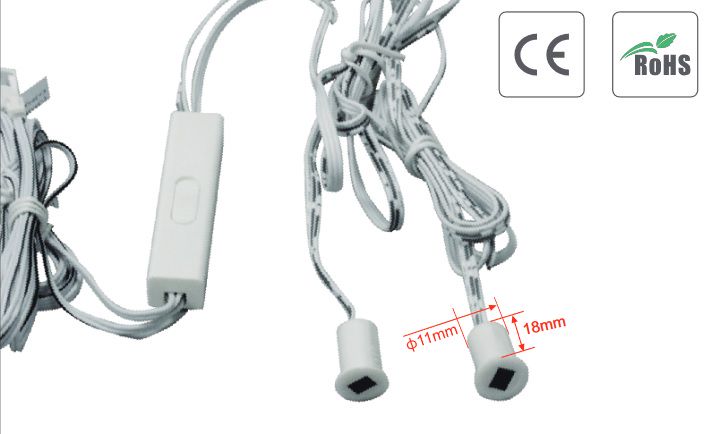

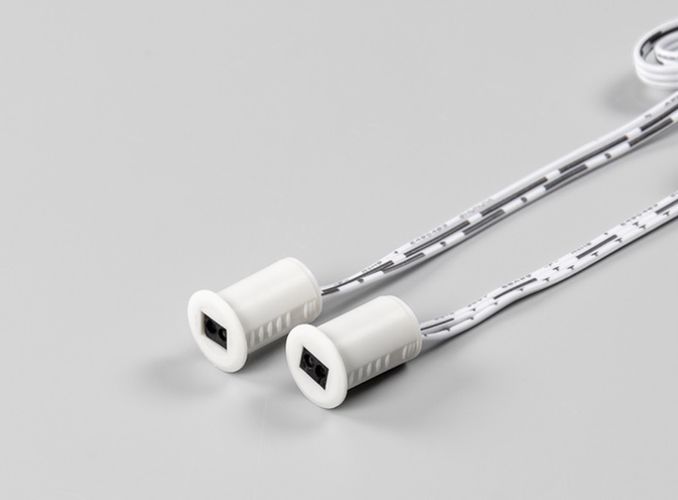

Sensor dimmensions | Ø11x18mm |
Controller dimmensions | 14x18mm |

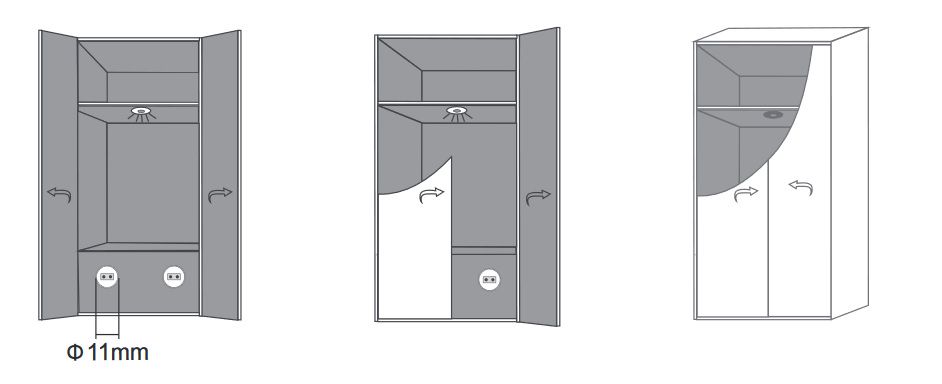

Door mode
Perfect for using in wardrobes with two doors or sliding doors.
- When there are target objects in the detecting range of both of the two detectors,the LED light switches OFF.
- When there are no target object in the detecting range of either of the two detectors, the LED light switches ON.
Hand mode
- The LED light will switch ON when hand pass over the detectors within the 10cm detection range.
- The LED light will switch OFF when hand pass over the detectors within the 10cm detection rangeagain.
- The IR sensor switch will turn on or off the led light with above repeatable steps.
Noderīga informācija
Specifikācijas
Artikuls | 333946 |
Svars | 0.07 kg. |
Savienojuma tips.. | ON-OFF |
Veids | Slēdzis |
Kontrole | Viena krāsa |
Vadības strāva, mA | Citi mA |
NomNr | IR010 |
Ieejas spriegums DC līdz, V | 12 |
Strāva, A | 4 |
Ieejas spriegums līdz, V | 24 |
