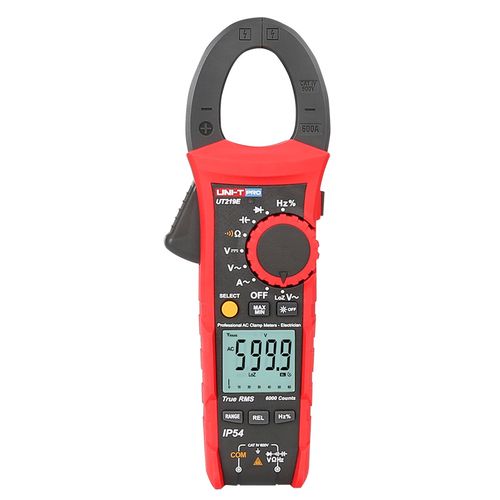

Profesionālas strāvas mērīšanas knaibles UT219E UNI-T
Produkta nr.: UT219E
Piegādes termiņi
Piegāde uz norādīto ar adresi ar kurjeru
Piegāde uz norādīto ar adresi ar kurjeru
Vairāk par 35,00 € (Pasūtījumi līdz 1000 kilogrami) | Bez maksas |
Līdz 35,00 € (Pasūtījumi līdz 1000 kilogrami) | 3,99 € |
Piegāde uz DPD Paku skapi
Piegāde uz DPD Paku skapi
Pēc preču nodošanas kurjeram mēs Jūs informēsim e-pastā. Bezmaksas piegāde pasūtījumiem virs 35 EUR.
2,50 €
Preces apraksts
Features
1. 2m drop proof, IP54, CAT IV 600V
2. Large 6000-digit LCD backlight (auto) display.
3. True RMS
4. LoZ voltage test, for ghost voltage measurement
5. MAX/MIN/REL testing mode, data hold, excluding the test lead interference of resistance measurement
| Specifications | ||
| Model | UT219E | |
| AC current (A) | 60.00A ~ 600.0A | ±(1.8%+6) |
| AC voltage (V) | 6.000V ~ 600.0V | ±(1.0%+6) |
| LoZ ACV | 600.0V | ±(2.5%+6) |
| DC voltage (V) | 600.0mV ~ 600.0V | ±(0.6%+3) |
| Resistance (Ω) | 600.0Ω ~ 60.00MΩ | ±(1.0%+3) |
| Capacitance | 60.00nF ~ 60.00mF | ±(4.0%+7) |
| Frequency | 60.00Hz ~ 10.00MHz | ±(0.1%+6) |
| Duty ratio | 0.1% ~ 99.9% | ±(2.6%+7) |
| Features | ||
| Display count | 6000 | |
| Auto/Manual range | √ | |
| Jaw size | 33mm | |
| True RMS | √ | |
| AC current frequency response | 40Hz~ 400Hz | |
| AC voltage frequency response | 40Hz~ 400Hz | |
| Diode test | 6V/10V | √ |
| Measuring digit conversion rate | times/s | 3 |
| Measuring analogue bar conversion rate | times/s | 10 |
| Analogue bar | 31 section | √ |
| LCD display (HTN) | interface | Single display |
| Auto power off | √ | |
| Low battery indication | √ | |
| Data hold (H) | √ | |
| Relative value (REL) | √ | |
| MAX/MIN | √ | |
| Functional selection (SELECT) | √ | |
| Auto backlight | √ | |
| 2m drop proof | √ | |
| Protection grade | IP54 | |
| Input impedance | ≥10MΩ | √ |
| General Characteristics | ||
| Power supply | AAA 1.5V alkaline battery × 3 | |
| LCD size | 35mm × 31mm | |
| Device color | red and grey | |
| Device weight | 338g | |
| Device size | 235mm × 83mm × 47mm | |
| Standard accessories | testing probes, batteries, carrying bag | |
| Standard individual packing | gift box, user manual, warranty card | |
| Standard quantity per carton | 20pcs | |
| Standard carton size | 575mm × 490mm × 330mm | |
| Standard carton gross weight |
| |
Noderīga informācija
Specifikācijas
Artikuls
261039
Svars
0.716 kg.
Svītrkodi
6935750521953
Garantijas periods (mēneši)
12
Zīmols
NomNr
UT219E
