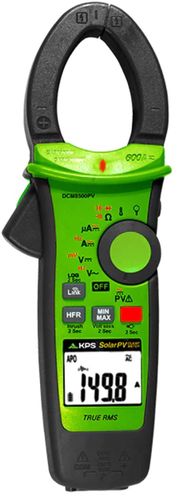

Strāvas mērīšanas knaibles
Piegādes termiņi
Piegāde uz norādīto ar adresi ar kurjeru
Piegāde uz norādīto ar adresi ar kurjeru
Vairāk par 35,00 € (Pasūtījumi līdz 1000 kilogrami) | Bez maksas |
Līdz 35,00 € (Pasūtījumi līdz 1000 kilogrami) | 3,99 € |
Piegāde uz DPD Paku skapi
Piegāde uz DPD Paku skapi
2,50 €
Preces apraksts
Features:
- Industrial, HVAC & Solar PV Application
- 2000VDC measurement for Photovoltaic output, supplied with designated PV test Leads
- 6,000 count with large white LED backlight display
- DC 600mV measurement for sensors or other application
- DC uA for flame rod testing
- Inrush Current measurement (100ms)
Technical data:
| Function | Range | OL Reading | Resolution | Accuracy |
| DC mV | 600.0mV | 660.0mV | 0.1mV | ±(0.7% + 5D) |
| DC Voltage | 600.0V | 660.0V | 0.1V | ±(0.7% + 2D) |
| 1000V | 1100V | 1V | ||
| AC Voltage | 600.0V | 660.0V | 0.1V | ±(1.0% + 5D) |
| 1000V | 1100V | 1V | ||
| PV DC Voltage | 600.0V | 660.0V | 0.1V | ±(2.0% + 5D) |
| 2000V | 2200V | 1V | ||
| PV AC Voltage | 600.0V | 660.0V | 0.1V | ±(2.0% + 5D) |
| 1500V | 1600V | 1V | ||
| AC/DC μA | 400.0μA | 440.0μA | 0.1μA | ±(1.0% + 3D) |
| 4000μA | 4400μA | 1μA | ||
| DC Current | 60.00A | 66.00A | 0.01A | ±(2.0% + 5D) |
| 600.0A | 660.0A | 0.1A | ||
| AC Current | 60.00A | 66.00A | 0.01A | ±(2.0% + 5D) |
| 600.0A | 660.0A | 0.1A | ||
| Frequency | 100.00Hz | 100.00Hz | 0.01Hz | ±(0.3% + 3D) |
| 1000.0Hz | 1000.0Hz | 0.1Hz | ||
| 10.000kHz | 10.000kHz | 0.001kHz | ||
| Resistance | 600.0Ω | 660.0Ω | 0.1Ω | ±(0.9% + 5D) |
| 6.000kΩ | 6.600kΩ | 0.001kΩ | ±(0.9% + 2D) | |
| 60.00kΩ | 66.00kΩ | 0.001kΩ | ||
| 600.0kΩ | 660.0kΩ | 0.1kΩ | ||
| Diode | 1.500V | 1.550V | 0.001V | ±(0.9% + 2D) |
| Capacitance | 100.0μF | 110.0μF | 0.1μF | ±(1.9% + 2D) |
| 1000μF | 1100μF | 1μF | ||
| Temperature | -40.0°C~400.0°C | 440.0°C | 0.1°C | ±(1% + 20D) |
| -40.0°F~752.0°F | 824.0°F | 0.1°F | ±(1% + 36D) |
