Product description

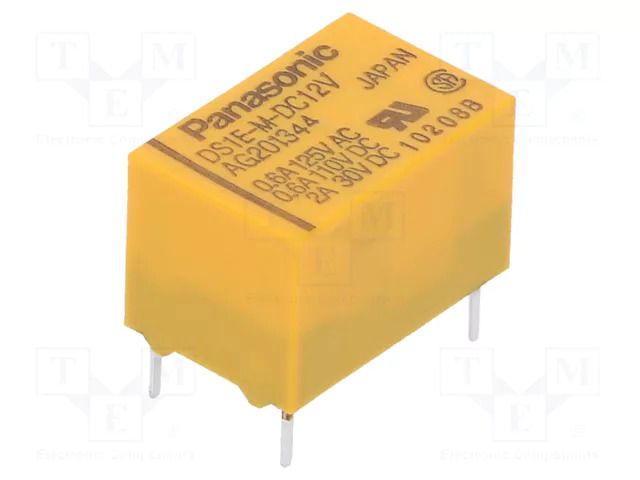

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 2A; DS; max.250VAC; PCB PANASONIC
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; 2A; DS; max.250VAC; PCB
Useful information
Supplier parameters
Product code
DS1E-M-DC12V
Product ID
U-2214499
Body dimensions
15x9.9x9.8mm
Coil resistance
360Ω
Coil voltage min.
8.4V DC
Contact current max.
2A
Contact material
silver
Contact plating
gold-plated
Contacts configuration
SPDT
Manufacturer
PANASONIC
Manufacturer series
DS
Mechanical durability
100000000 cycles
Mounting
PCB
Operating temperature
-40...70°C
Rated coil voltage
12V DC
Relay variant
miniature
Switched voltage
max. 220V DC
Type of relay
electromagnetic
Brand
PANASONIC
Supplier's product code
DS1E-M-DC12V
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
