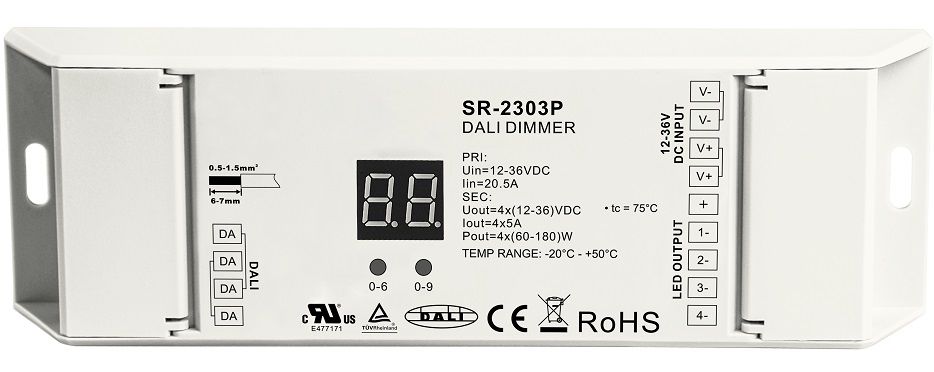

LED universāls dimmeris DALI, PUSH, RIAC, 0 / 1-10V, 230VAC / 12-36Vdc, Sunricher
Produkta nr.: SR-2303P
Piegādes termiņi
Piegāde uz norādīto ar adresi ar kurjeru (1-4d.d., ja prece ir noliktavā)
Piegāde uz norādīto ar adresi ar kurjeru (1-4d.d., ja prece ir noliktavā)
Vairāk par 35,00 € (Pasūtījumi līdz 1000 kilogrami) | Bez maksas |
Līdz 35,00 € (Pasūtījumi līdz 1000 kilogrami) | 3,99 € |
Piegāde uz DPD Paku skapi (1-4d.d., ja prece ir noliktavā)
Piegāde uz DPD Paku skapi (1-4d.d., ja prece ir noliktavā)
Pēc preču nodošanas kurjeram mēs Jūs informēsim e-pastā. Bezmaksas piegāde pasūtījumiem virs 35 EUR.
2,50 €
Preces apraksts
Svars
0.228 kg.
Zīmols
DALI, Push, Phase Cut or 0/1-10V (selectable) LED Dimmer
Functions
- Multifunction 4 in 1 LED Dimmer, with DALI, AC push, 0/1-10V and Phase Cut dimming interfaces
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
- Built-in DALI-2 interface, DALI DT6 device
- Match all DALI systems in the market
- Dip switch to select different dimming interfaces (must be selected before wiring)
- 1 channel 12-36VDC output, max. 20A
- Supports both leading edge and trailing edge dimming input
- 1 DALI address assigned by DALI master
- Compatible with universal phase cut dimmers
- To work with power repeater to expand output power unlimitedly.
Technical data
| Input Voltage | 12-36VDC |
| Output current | 1x20A |
| Output Power | 1x(240-720)W |
| Remarks | Constant voltage |
| DALI Consumption | 2mA |
| Dimming Range | 0.1%-100% |
| Ambient Temperature | -20℃ ~ +50℃ |
| Waterproof grade | IP20 |
| Size | 170mm x 53.4mm x 28mm |
