5V 2 kanālu releja modulis
Produkta nr.: ME114
Piegādes termiņi
Piegāde uz norādīto ar adresi ar kurjeru (1-4d.d., ja prece ir noliktavā)
Vairāk par 35,00 € (Pasūtījumi līdz 1000 kilogrami) | Bez maksas |
Līdz 35,00 € (Pasūtījumi līdz 1000 kilogrami) | 3,99 € |
Piegāde uz DPD Paku skapi (1-4d.d., ja prece ir noliktavā)
Pēc preču nodošanas kurjeram mēs Jūs informēsim e-pastā. Bezmaksas piegāde pasūtījumiem virs 35 EUR.
2,50 €
Preces apraksts
Svars | 0.03 kg. |
Zīmols | IDUINO |

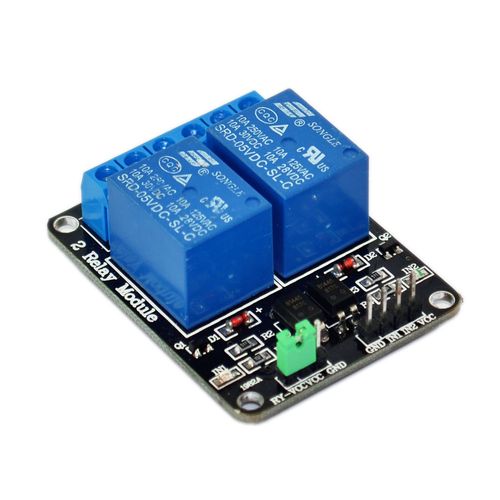

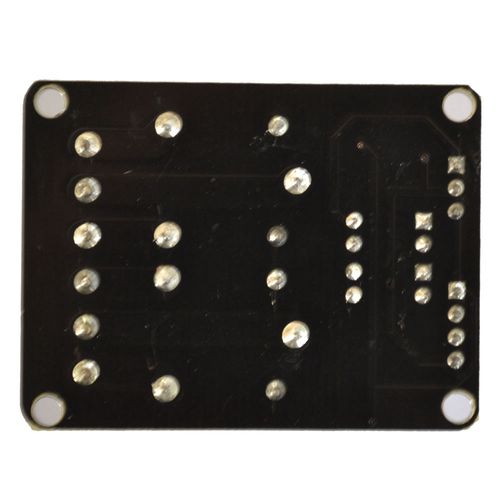

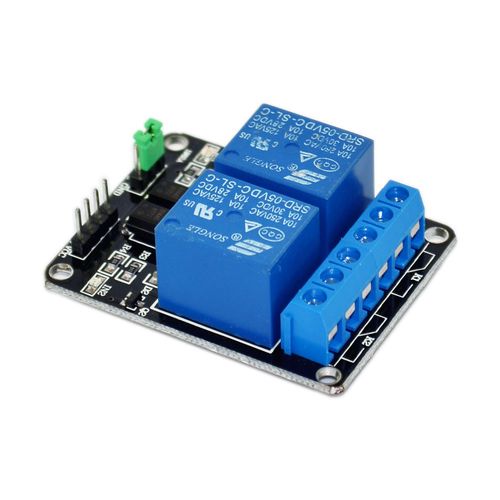

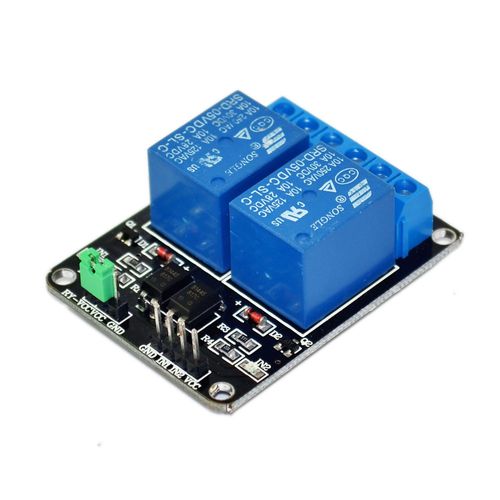

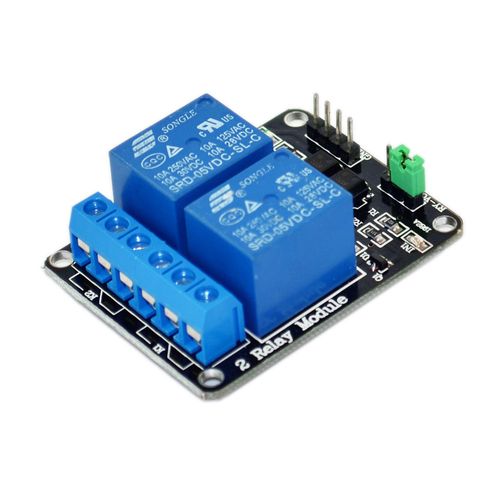

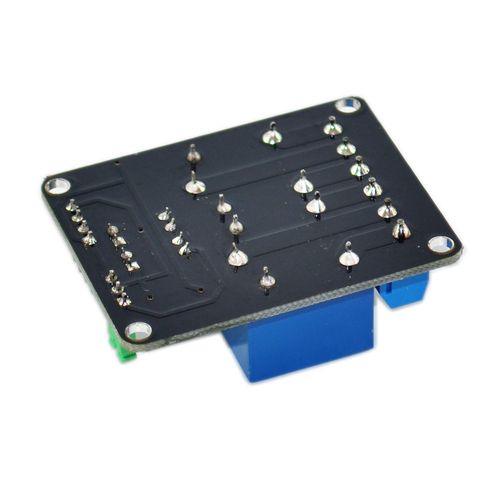

Iduino 2 relays module - channels with optical insulation
Module with two SRD-05 relays with the coil powered with a voltage of 5 V and optical insulation of the input, and with the mounting holes. The system allows you to control actuators using the microcontroller ports or any development kit.
The connection of the relays module
For proper operation, it is sufficient to connect the power of the relay coil and the digital control signal. Pins are the standard gold pin straps with the pitch of 2.54 mm, which enable the connection using the popular connecting cables. For connecting the actuator, use the ARK screw connection.
The relay has the following pins
- VCC- power of the opto insulation
- COM- power supply of the relay coil, by default it is connected to GND by jumper
- IN1, IN2- control input of the relays, activated by the high status
- GND- ground of the system, all the GND pins are connected together
- KF (ARK)connectors- the relay contacts are connected in accordance with the pattern on the board of the module.
Examples of the application of the relay
- Driver of the lighting
- The driver of the actuators
Specification of the relay module
- The VCC supply voltage: 5 V
- Activated by the high status
- Relay: SRD-05VDC-SL-C
- Coil voltage: 5 V
- The maximum voltage of the contacts: 250 VAC, 110 VDC
- Maximum current: 10A
- Board sizes: 50 x 38 mm
- Diameter of mounting holes: 3 mm
Specifikācijas
Artikuls | 301894 |
Svars | 0.03 kg. |
Zīmols | IDUINO |
NomNr | ME114 |
