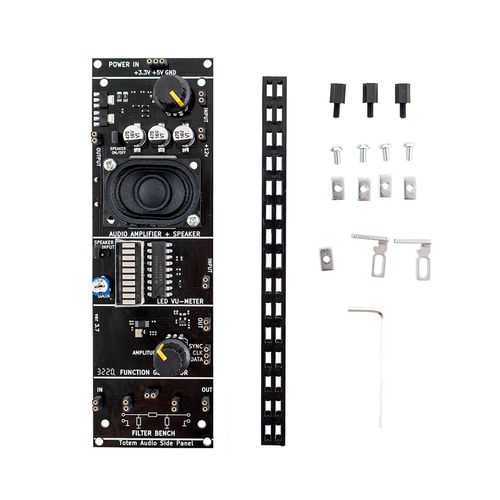

Audio sānu panelis MINI Lab TOTEM

Produkta nr.: TE-SP03-B
no gallery

Audio sānu panelis MINI Lab TOTEM

Produkta nr.: TE-SP03-B
Totem
Svars0.12 kg.
ZīmolsTotem

Cenu robežas

DaudzumsCena ar PVN (gab.)
1
40.95
2+
38.90
B2B

Min. daudzums: 1

Mērvienība: gab.

Kopā:

40.95

lemona shopJa preces ir pieejamas LEMONA electronics veikalā tās varat saņemt jau nākamajā darba dienā.

home deliveryPiegāde uz klienta adresi 1-2 d. d.

Shipping parcelPiegādes uz paku skapjiem 1-2 d. d.


Piegādes termiņi

lemona shop

Saņemšana Lemona veikalā

Saņemšana Lemona veikalā Bez maksas

Pasūtījumi tiek apstrādāti un atlasīti darba dienās no pulksten 8:00 līdz 17:00. Kad pasūtījums būs gatavs saņemšanai, Jūs par to tiksiet informēti īsziņā.

Atlikums noliktavā

Ir1 gab.
Veikals
Ir1 gab.
Noliktava
home delivery

Piegāde uz norādīto ar adresi ar kurjeru (ieteicams)

Piegāde uz norādīto ar adresi ar kurjeru (ieteicams)

Vairāk par 35,00 €

(Pasūtījumi līdz 1000 kilogrami)

Bez maksas

Līdz 35,00 €

(Pasūtījumi līdz 1000 kilogrami)

3,99 €

Shipping parcel

Piegāde uz DPD Paku skapi (ieteicams)

Piegāde uz DPD Paku skapi (ieteicams)

Pēc preču nodošanas kurjeram mēs Jūs informēsim e-pastā. Bezmaksas piegāde pasūtījumiem virs 35 EUR.

2,50 €

Preces apraksts

Totem
Svars0.12 kg.
ZīmolsTotem
The Audio Side Panel is designed to use with the Totem Mini Lab and Totem Micro Lab.

This expansion board focuses attention to the analog audio side of electronics, and contains an audio generation, visualization and output loop.

Side panels are meant to bring easy access to commonly used components that are difficult to wire on breadboards due to their dimensions, or require additional equipment to operate them. Side panels give a plug and play interface that lets users to concentrate on experiments or learning, rather than spending time solving issues on how to interface with the part.

 Get more information in Documentation


Side panel includes:

Audio amplifier with speaker — AB class discrete audio amplifier with integrated loudspeaker. Can route amplified audio signal either to the speaker or to external sink via breadboard pins. Capable of outputting up to 1 W of RMS power. Works with 12 V voltage source.
LED VU-meter — Audio signal volume unit (VU) with 10 bar LED display. Works in approximately 3dB/step, 30 dB range. Has an integrated sensitivity adjustment potentiometer
Digital function generator — sine, square, and triangle wave generator capable of outputting signals up to 12.5 MHz . Has a potentiometer for output amplitude control. Can be easily controlled from TotemDuino board.
Filter bench – simple pi-filter prototyping area. Can be used to experiment with various component effect on signals.


Attaching to the Mini Lab Frame:

The Kit includes all ready-to-use mechanical parts and tools to fix side panel on the Mini Lab frame.
Fixes elegantly to the sides.
You can easily have several panels attached to your Mini Lab simultaneously.


Noderīga informācija


Specifikācijas

Artikuls335022
Svars0.12 kg.
ZīmolsTotem
NomNrTE-SP03-B
