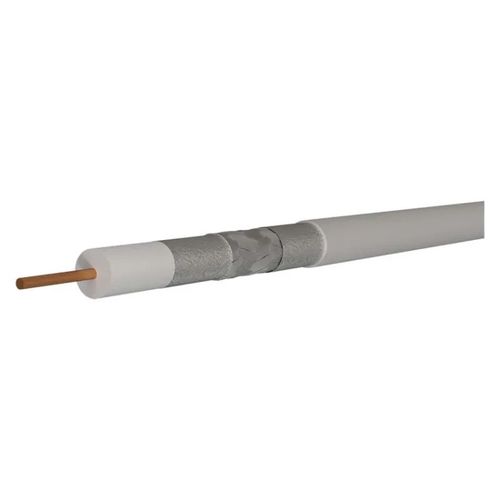

Coaxial Cable CB115 100m, EMOS

Name: Coaxial Cable CB115 100m, EMOS
Brand: EMOS
SKU: U-2337328
Price: 0.57 EUR
Availability: InStock

Produkta nr.: S5272

Zīmols

EMOS

Vairāk līdzīgu produktu

Meklē "Coaxial Cable"

Piegādes termiņi

2024-05-28 Paredzamā piegāde, pasūtot tagad

Prece tiek pasūtīta no piegādātāja noliktavas. Ja piegādātājs šo preci nevarēs piegādāt līdz norādītajam datumam, informēsim Jūs e-pastā..

Ir	Piegādātāju noliktava

Piegāde uz norādīto ar adresi ar kurjeru

Vairāk par 35,00 €

(Pasūtījumi līdz 1000 kilogrami)

Bez maksas

Līdz 35,00 €

(Pasūtījumi līdz 1000 kilogrami)

3,99 €

Piegāde uz DPD Paku skapi

Pēc preču nodošanas kurjeram mēs Jūs informēsim e-pastā. Bezmaksas piegāde pasūtījumiem virs 35 EUR.

2,50 €

Preces apraksts

Zīmols

EMOS

Coaxial Cable CB115 100m, EMOS

Specifikācijas

Artikuls

U-2337328

Svītrkodi

8592920041000

Zīmols

EMOS

NomNr

S5272

Piegādātāja prece apraksts

Product description

Type RG6 coaxial cable of the highest quality with central conductor made of pure bare copper, and TRISHIELD triple shielding, white colour, CLASS A. The cable is designed for demanding applications transmitting CCTV, TV or SAT signal.
Since the cable's shielding has excellent effectiveness (= very low radiation), the cable can be used to conduct very powerful signal, thus effectively increasing the distance across which it can transfer signal.
The high-quality shielding eliminates problems with convergence of multiple cables across great distances.

Piegādātāja preces parametri

APE = air dielectric

not stated

capacity (pF/m)

coaxial cable type

CB115/RG6 CU TRISHIELD

color cable sheath > Cable sheath color

white

colour of insulation of power conductors

not stated

construction of power conductors

not stated

cross-section of power conductors

not stated

dangerous substances

none

diameter of cable sheath

6.8 mm

diameter of the inner conductor

1.02 mm

dielectric type, diameter

FPE 4.8 mm

factor of shortening

0.82

FPE = Foam dielectric

not stated

impedance

75 Ohm

insulation of power conductors

not stated

insulation resistance between the cores at 20 °C (MOhm/km)

500

intended use

indoor installation, interference resistant, CLASS A

material of the cable jacket

PVC

material of the inner conductor

copper (Cu)

material of the shielding

aluminium (Al)

max. attenuation at 20 °C (dB/100 m) 1 000 MHz

21,2

max. attenuation at 20 °C (dB/100 m) 10 MHz

max. attenuation at 20 °C (dB/100 m) 100 MHz

max. attenuation at 20 °C (dB/100 m) 2 000 MHz

27,2

max. attenuation at 20 °C (dB/100 m) 450 MHz

max. attenuation at 20 °C (dB/100 m) 650 MHz

17.5

max. attenuation at 20 °C (dB/100 m) 860 MHz

20,6

max. DC resistance at 20 °C (Ohm/km) - inner core

19,5

max. DC resistance at 20 °C (Ohm/km) - outer core

48.5

min. bend radius single/multiple

35/70 mm

min. return loss at 20 °C (dB) 10 to 300 MHz

not stated

min. return loss at 20 °C (dB) 600 to 900 MHz

min. return loss at 20°C (dB) 300 to 600 MHz

min. shielding attenuation (dB) 10 ~ 800 MHz

>100

mounting temperature

+5 °C to +60 °C

number of braiding wires

96× 0.12 mm

number of shieldings

packaging

100 m, reel

PE = polyethylene dielectric

yes

PES = layer film

not stated

reaction to the fire

Eca

recommended types of connectors - F pressing

not stated

recommended types of connectors - F screwing

*K7351

shielding diameter

96× 0.12 mm²

shielding I. foil

1× Al/PET

shielding II. foil

Al/PET

shielding protection

90 %

storage temperature

-20 °C to +75 °C

suitable for outdoor use

type of packaging - labeled yardage > Type of packaging - labeled meters

1–100 m

type of packaging - length

100 m

type of packaging - type of coil

paper

UV resistant

warranty period

5 years

weight (kg/km)

not stated

NomNr

S5272

Brand

EMOS

Supplier's product code

S5272

Product ID

U-2337328
