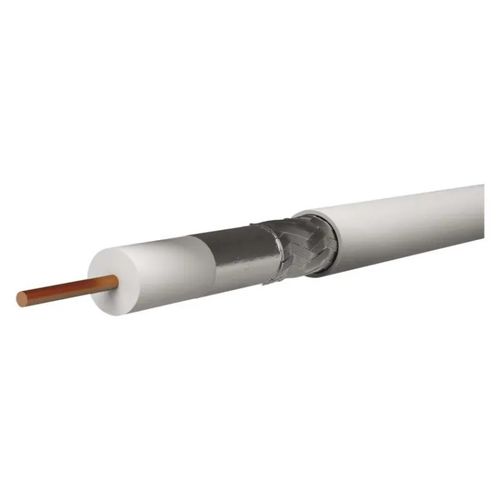

Coaxial Cable CB21D 100m, EMOS

Produkta nr.: S5271
no gallery
no gallery
EMOS
Zīmols
Vairāk līdzīgu produktu

Cenu robežas

DaudzumsCena ar PVN (gab.)
1+
€0.62
B2B

Min. daudzums: 100

Daudzkārtīgums: 100

Kopā:

€62.00
2024-05-28 Paredzamā piegāde, pasūtot tagad

Piegādes termiņi

2024-05-28 Paredzamā piegāde, pasūtot tagad

Prece tiek pasūtīta no piegādātāja noliktavas. Ja piegādātājs šo preci nevarēs piegādāt līdz norādītajam datumam, informēsim Jūs e-pastā..

IrIr

Piegādātāju noliktava

home delivery

Piegāde uz norādīto ar adresi ar kurjeru

Piegāde uz norādīto ar adresi ar kurjeru

Vairāk par 35,00 €

(Pasūtījumi līdz 1000 kilogrami)

Bez maksas

Līdz 35,00 €

(Pasūtījumi līdz 1000 kilogrami)

3,99 €

Shipping parcel

Piegāde uz DPD Paku skapi

Piegāde uz DPD Paku skapi

Pēc preču nodošanas kurjeram mēs Jūs informēsim e-pastā. Bezmaksas piegāde pasūtījumiem virs 35 EUR.

2,50 €

Preces apraksts

EMOS
Zīmols
Coaxial Cable CB21D 100m, EMOS

Specifikācijas

Artikuls
U-2337327
Svītrkodi
8592920018224
Zīmols
NomNr
S5271

Piegādātāja prece apraksts

Product description

Type KH21D coaxial cable of the highest quality with central conductor made of pure bare copper, white colour, CLASS A. The cable is designed for demanding applications transmitting CCTV, TV or SAT signal.
Since the cable's shielding has excellent effectiveness (= very low radiation), the cable can be used to conduct very powerful signal, thus effectively increasing the distance across which it can transfer signal.
The high-quality shielding eliminates problems with convergence of multiple cables across great distances.

Piegādātāja preces parametri

APE = air dielectric
no
capacity (pF/m)
52
coaxial cable type
CB21D
color cable sheath > Cable sheath color
white
colour of insulation of power conductors
not stated
construction of power conductors
not stated
cross-section of power conductors
not stated
dangerous substances
none
diameter of cable sheath
6.8 mm
diameter of the inner conductor
1.1 mm
dielectric type, diameter
FPE 4.8 mm
factor of shortening
0.85
FPE = Foam dielectric
yes
impedance
not stated
insulation of power conductors
not stated
insulation resistance between the cores at 20 °C (MOhm/km)
1 000
intended use
indoor installation, interference resistant, CLASS A
material of the cable jacket
PVC
material of the inner conductor
copper (Cu)
material of the shielding
aluminium (Al)
max. attenuation at 20 °C (dB/100 m) 1 000 MHz
19.3
max. attenuation at 20 °C (dB/100 m) 10 MHz
2.2
max. attenuation at 20 °C (dB/100 m) 100 MHz
5.8
max. attenuation at 20 °C (dB/100 m) 2 000 MHz
29.5
max. attenuation at 20 °C (dB/100 m) 450 MHz
12.5
max. attenuation at 20 °C (dB/100 m) 650 MHz
15.3
max. attenuation at 20 °C (dB/100 m) 860 MHz
18.5
max. DC resistance at 20 °C (Ohm/km) - inner core
18.5
max. DC resistance at 20 °C (Ohm/km) - outer core
38.5
min. bend radius single/multiple
35/70 mm
min. return loss at 20 °C (dB) 10 to 300 MHz
30
min. return loss at 20 °C (dB) 600 to 900 MHz
23
min. return loss at 20°C (dB) 300 to 600 MHz
25
min. shielding attenuation (dB) 10 ~ 800 MHz
>110
mounting temperature
+5 °C to +60 °C
number of braiding wires
128× 0.12 mm
number of shieldings
2
packaging
100 m, reel
PE = polyethylene dielectric
not stated
PES = layer film
no
reaction to the fire
Eca
recommended types of connectors - F pressing
*K7220
recommended types of connectors - F screwing
*K7351
shielding diameter
128× 0.12 mm²
shielding I. foil
1× Al/PET
shielding II. foil
none
shielding protection
>98 %
storage temperature
-20 °C to +75 °C
suitable for outdoor use
no
type of packaging - labeled yardage > Type of packaging - labeled meters
1–100 m
type of packaging - length
100 m
type of packaging - type of coil
paper reel
UV resistant
no
warranty period
5 years
weight (kg/km)
41.5
NomNr
S5271
Brand
EMOS
Supplier's product code
S5271
Product ID
U-2337327
