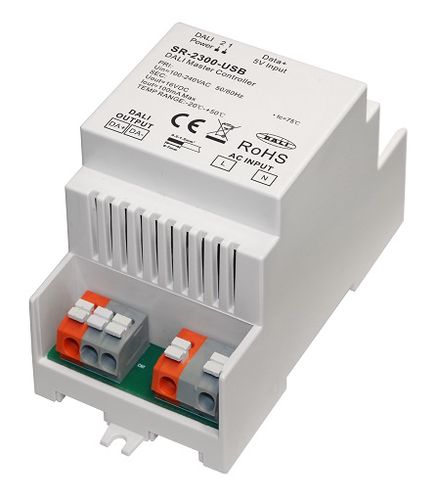

DALI galvenais kontrolieris uz DIN sliedi, USB, ar barošanas avotu, Sunricher
Produkta nr.: SR-2300-USB
DALI galvenais kontrolieris uz DIN sliedi, USB, ar barošanas avotu, Sunricher
Produkta nr.: SR-2300-USB
Svars | 0.229 kg. |
Zīmols | Sunricher |
Piegādes termiņi
Piegāde uz norādīto ar adresi ar kurjeru (1-4d.d., ja prece ir noliktavā)
Vairāk par 35,00 € (Pasūtījumi līdz 1000 kilogrami) | Bez maksas |
Līdz 35,00 € (Pasūtījumi līdz 1000 kilogrami) | 3,99 € |
Piegāde uz DPD Paku skapi (1-4d.d., ja prece ir noliktavā)
Pēc preču nodošanas kurjeram mēs Jūs informēsim e-pastā. Bezmaksas piegāde pasūtījumiem virs 35 EUR.
2,50 €
Preces apraksts
Svars | 0.229 kg. |
Zīmols | Sunricher |
DIN Rail DALI Master Controller
Features
- Supports DT6, DT8 Tc, DT8 XY, DT8 RGBWA device types
- Supports addressing, grouping and scene configuration for max 64 control gears
- Built-in 100mA DALI PS, no extra wiring required
- Easy connect to a Windows PC through USB port
- Easy & quick configuration through the PC configuration software
- Built-in battery, built-in RTC, supports timer task configuration
- Supports cycle schedule configuration
- Supports bionic schedule configuration (Human Centric Lighting)
Technical data
Input voltage while built-in DALI power supply enabled | 100-240VAC 50/60Hz |
Output voltage while built-in DALI power supply enabled | 16VDC |
Output current while built-in DALI power supply enabled | 100mA max |
Input voltage while built-in DALI power supply disabled | 5VDC |
DALI current consumption | 4mA max |
Number of DALI Channels | 1 |
Ambient Temperature | -20℃ ~ +50℃ |
Size | 110mm x 53mm x 65mm |
Waterproof grade | IP20 |
Noderīga informācija
Specifikācijas
Artikuls | 354676 |
Svars | 0.229 kg. |
Zīmols | Sunricher |
NomNr | SR-2300-USB |
