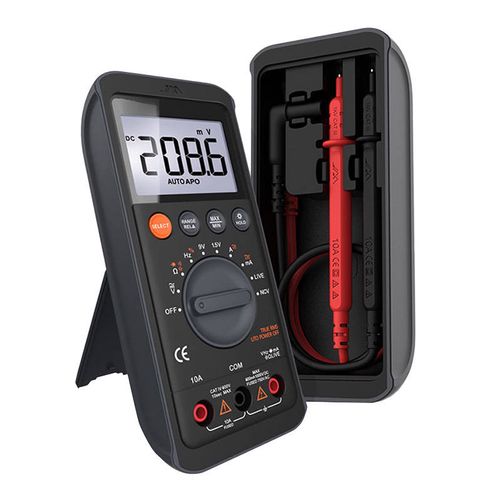

JIMI Home JM-G3401 Digital Universal Multimeter.
JIMI Home JM-G3401 is a multifunctional device that you will use during electrical work. With it you will measure voltage, resistance, capacitance, frequency, true RMS value and much more. It is equipped with a display, large dial and buttons for convenient operation.
Accurate measurements
The JIMI Home digital universal multimeter stands out for its outstanding precision. Thanks to its clever design, you will accurately measure the true RMS value regardless of the conditions. What's more, it automatically changes the measurement range of AC/DC voltage, current, resistance, etc., making measurements more accurate. In addition, it offers non-contact voltage detection (NCV) and Live Test function.
More capabilities
The JIMI Home JM-G3401 also allows you to measure battery voltage - just attach the black (-) and red (+) wires to the battery. In addition, it has self-restoration fuses, which will be renewed in about 3-5 seconds if blown. In addition, the LCD display will provide you with information about the operation of the device. The multimeter also has a backlight function for the screen. To turn it on, hold down the HOLD button for 2 seconds.
Thoughtful design
The JIMI Home digital multimeter is designed to make using it convenient. The magnetic design allows you to attach the product to a metal surface, for comfortable use. The device also has a stand, for greater freedom. The wires are made of pure 10A copper and finished with heat-resistant plastic. In addition, the product is distinguished by a 2-piece design, which allows you to simultaneously store the wires and protect the display from scratches.
Automatically shuts off
This is not the end of the advantages of the JIMI Home JM-G3401. The product has an automatic shut-off function if you don't use it for 15 minutes. After this time, it will go into sleep mode to save energy. In addition, you can disable this function at any time - just press the SELECT button and the APO message will appear on the screen.
Included
- Digital universal multimeter
- Measuring wires
- User manual
| Manufacturer | JIMI Home |
|---|---|
| Model | JM-G3401 |
| DC voltage measurement range | 600mV/6V/60V/600V/1000V (±0.5%+3, 0.8%+10) |
| AC voltage measurement range | 500mV/6V/60V/600V750V (±0.8%+3, 1.2%+10) |
| DC current measurement range | 60mA/400mA/6A/10A (±1.2%+10, 2.0%+10) |
| AC current measurement range | 60mA/400mA/6A/10A (±1.2%+10, 2.0%+10) |
| Resistance measurement range | 600ꭥ/6kꭥ/60kꭥ/600kꭥ/6Mꭥ/60Mꭥ (±0.8%+5, 0.8%+3, 2.5%+3) |
| Capacitance measurement range | 60nF/600nF/6µF/60µF/600µF/6mF/60mF (±5.5%+20, 5.0%+3) |
| Frequency measurement range | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
| Temperature (°C/°F) | 0°C ~ 40°C |
| Diode testing | Yes |
| NCV | Yes |
| Live test | Yes |
| On/Off test | Yes |
| Display | LCD |
| True RMS value | Yes |
| Self-recovery fuse | Yes |
| Sampling frequency | approx. 3 times per second |
| Automatic power off | Yes,after 15 min |
| Low voltage indicator | Yes |
| Illumination | Yes |
| Data storage | Yes |
| Number of counts | 5999 |
| Overload indicator | OL |
| Power supply | 2x 1.5V AAA batteries |
| Weight | 340g (including batteries) |
| Dimensions | 153 x 70 x 53 mm |
