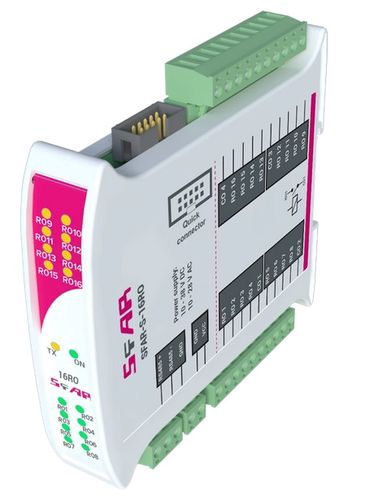

Industrial I/O module with Modbus RTU/ASCII communication - 16 Relay Outputs (max. 3 A @ 30 V DC, 3 A @ 230 V AC). Power supply 10-38 V DC; 10-28 V AC
Piegādes termiņi
Piegāde uz norādīto ar adresi ar kurjeru (1-4d.d., ja prece ir noliktavā)
Piegāde uz norādīto ar adresi ar kurjeru (1-4d.d., ja prece ir noliktavā)
Vairāk par 35,00 € (Pasūtījumi līdz 1000 kilogrami) | Bez maksas |
Līdz 35,00 € (Pasūtījumi līdz 1000 kilogrami) | 3,99 € |
Piegāde uz DPD Paku skapi (1-4d.d., ja prece ir noliktavā)
Piegāde uz DPD Paku skapi (1-4d.d., ja prece ir noliktavā)
2,50 €
Preces apraksts
SfAR-S-16RO is designed to be applied wherever it is necessary to switch to 3 A load of both AC or DC.
The module has 16x relay outputs (RO). Relay outputs are normally open (NO) type. All outputs are isolated from the logic with opto-isolators.
A built-in RS485 interface allows easy connection over Modbus RTU/ASCII protocol. A 32-bit ARM core processor provides fast processing and communication.
The module is equipped with a set of LEDs used to indicate the status of I/O, power supply, and RS485 communication.
Configuration of the modules is carried out with our free software, the SfAR Configurator. A built-in mini USB allows to perform a primary configuration of the unit without additional power supply.
To simplify installation, the modules have been equipped with the Quick Connector system. Using a dedicated SFAR-S-LINK cable allows connection of up to 10 modules, which provide both RS485 communication and external power supply.
