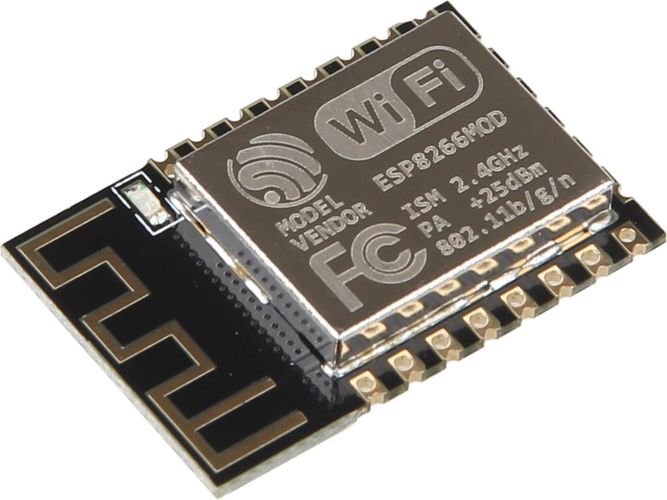

Joy-iT ESP8266 12F WIFI Module without PINs
Piegādes termiņi
Prece tiek pasūtīta no piegādātāja noliktavas. Ja piegādātājs šo preci nevarēs piegādāt līdz norādītajam datumam, informēsim Jūs e-pastā..
 Ir | Piegādātāju noliktava |
Piegāde uz norādīto adresi ar kurjeru
Piegāde uz norādīto adresi ar kurjeru
Vairāk par 50,00 € (Pasūtījumi līdz 1000 kilogrami) | Bez maksas |
Līdz 50,00 € (Pasūtījumi līdz 1000 kilogrami) | 3,99 € |
Piegāde uz DPD Paku skapi
Piegāde uz DPD Paku skapi
2,50
Preces apraksts
Specifikācijas
Piegādātāja prece apraksts
It offers an excellent range of functions in the smallest design.
Specially developed for mobile devices and the Internet of Things, the ESP12-F offers an independent network solution.
The module has powerful on-board processing and memory functions that allow minimal development time under minimal load during runtime.
Technical data:
Model: ESP-12F
MCU: Low Power 32-Bit
ADC: 10-Bit Analog-Digital-Converter
Peripherals: SDIO 2.0, UART, HSPI, I2C, I2S, IRDA, GPIO, PWM
Amount of Pins: Total: 18, GPIO: 10
Network: TCP/IP Protocol-Stack, supports antenna diversity
Network Protocols: IPv4, TCP, UDP, HTTP, FTP
Infrastructure-Modes: STA, AP, STA+AP
Encryptions: WEP, TKIP, AES
WiFi: 802.11 b/g/n 2,4 GHz - 2,5 GHz (2400M - 2483,5M)
RF Switch: Integrated TR-Switch, Balun, LNA, Power Amplifier
Transmission Modes: STBC, 1x1 MIMO, 2x1 MIMO
Packet Transmission: A-MPDU, A-MSDU, 0,4s guard intervals
Operating Temperature: -40 - +125 °C
Operating Current: Average: 80 mA
Standby Consumption: < 1.0 mW (DTIM3)
Deep Sleep Power: < 10 uA
Power Down Leakage Current: < 5 uA
Output Power: +20 dBm (im 802.11b Mode)
Mobile Devices: Supports Smart Link for Android and iOS devices
Other Features: Wakes up and transmits packets in: < 2 ms; Firmware upgrade via UART Download and OTA; Supports cloud server development
