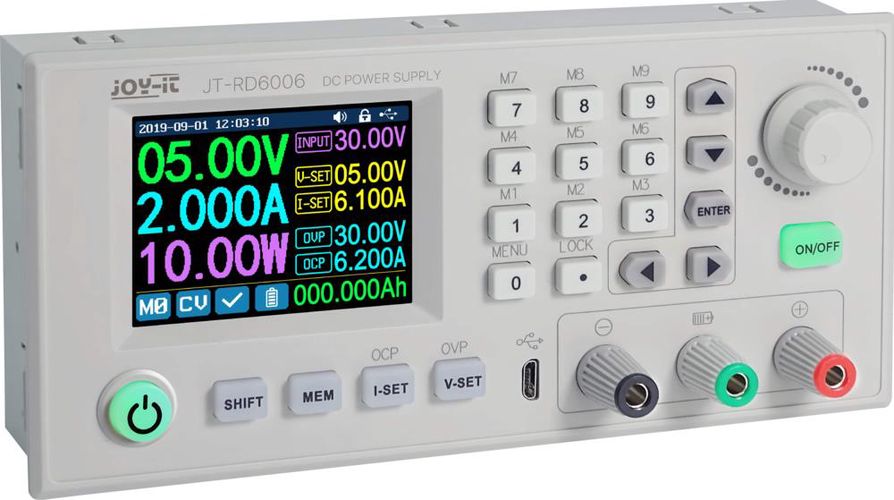

Joy-iT RD6006 Programmable laboratory power supply

Joy-iT RD6006 Programmable laboratory power supply

The RD6006 is a buck step down direct voltage power supply unit which can be used in different operation modes (f.i. Constant current or constant voltage mode, etc.).
Due to the keypad and a push and rotary encoder, the operation of the power supply unit is very comfortable.
In addition, you can easily save and reload up to nine settings using the keypad.
The high-resolution 2.4-inch colour display clearly shows all important information.
The USB interface and an optional wireless network interface enable the device to be operated via PC or with an app from mobile devices.
It has also diverse protection and limitation functions like f. i. Constant voltage, constant current operation mode or Overvoltage and Overcurrent protection and switchable fuses on the board (back side).
As optional available accessoires, there are two different cases and a wireless network module available.
The JT-RD6006-Case1 is a small case which has 2 bushes for direct current power supply, a power switch and active cooling system on the back.
The JT-RD6006-Case2 is bigger than the Case1 and offers additional space for an (industrial) power supply.
The wireless network module enables access via a smartphone app.

Technical data:

Characteristics: Battery charging function, value input comfortable via keypad, Overcurrent /overvoltage protection adjustable

Input voltage: 6 - 70 V

Output voltage: 0 - 60 V

Output current: 0 - 6 A

Output power: 0 - 360 W

Voltage resolution: 0,01 V

Current resolution: 0,001 A

Capacity measurement range: 0 - 9999.99 Ah

Energy measurement range: 0 - 9999.99 Wh

Residual ripple: 100 mV(pp) (at maximal capacity)

Display: 2.4 Inch LCD

Optional accesories: Cases in two sizes, wireless network module

Working temperature range: - 10 - 40 °C
