Piegādātāja prece apraksts

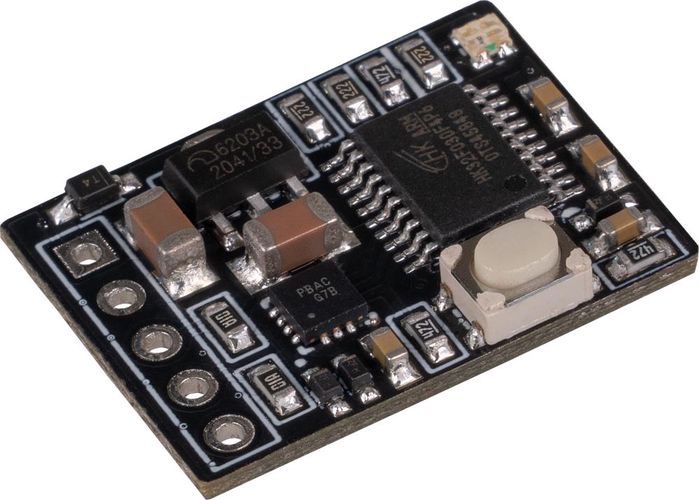

With this small module, you can trigger USB PowerDelivery protocols and thus, for example, charge your laptop via a PD-capable USB-C power supply unit.
The output voltage can be adjusted in 5 steps (5 V, 9 V, 12 V, 15 V and 20 V) via the button integrated on the module as well as via the trigger input.
The currently selected volt-age can be read from the color of the RGB LED integrated on the module.
Due to its interfaces and design, the module can be used flexibly and is highly integrable.
The output voltage can be adjusted in 5 steps (5 V, 9 V, 12 V, 15 V and 20 V) via the button integrated on the module as well as via the trigger input.
The currently selected volt-age can be read from the color of the RGB LED integrated on the module.
Due to its interfaces and design, the module can be used flexibly and is highly integrable.
Technical data:
Output voltage: 5 V / 9 V / 12 V / 15 V / 20 V (adjustable via button)
Selected output voltage: recognisable by the colour of the RGB LED
Supply voltage: (up to 20 V / 100 W)USB-PD-capable power supply (not included)
Output current: 5 A max.
Output power: 100 W max.
Input interface: Solder pads
Output interface: Solder pads
Special features: Adjustable output voltage, flexible applicable
