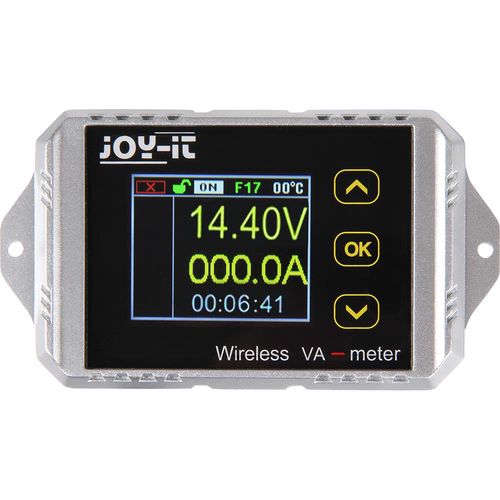

Joy-iT VAX1100 Multifunction measuring instrument

Joy-iT VAX1100 Multifunction measuring instrument

The VAX-1100 multifunction meter can measure voltage, current, work, power, temperature, real-time capacity and charge and discharge times in DC circuits.
The display can be connected to the measuring module with a micro-USB cable or via a wireless radio connection.
A total of 26 communication channels enable several instruments to communicate with the measuring instrument simultaneously.

Attention: Overvoltage, undervoltage and overcurrent protection can be activated by connecting an external relay (not included).

Technical data:

Voltage range: 0 - 100 V

Voltage resolution: 0.01 V

Voltage accuracy: ± 2% - 3 Digit

"Current range: 1 - 100 A

Current resolution: 0.1 A

Current accuracy: ± 5% - 10 Digit

Power range: 0 - 200 kW

Power resolution: 0.001 W

Energy range: 0 - 4000 kWh

Energy resolution: 0.001 Wh

Load display range: 0 - 2000 kAh

Load display resolution: 0.001 Ah

Temperature range: -20 - 120°C

Time range: 0 - 99 days

Time resolution: 1 second

Relays: connectable, optionally available

Negative overcurrent protection: 0 - -100 A ( only with external connected relay )

Positive overcurrent protection: 0 - 100 A ( only with external connected relay )

Overvoltage protection ( OVP ): 0 - -100 V ( only with external connected relay )

Undervoltage protection ( LVP ): 0 - -100 V( only with external connected relay )

Protection delay time: 0 - 10 seconds

Communication channels: A - Z ( 26 channels )

Address range: 01 - 99

Communication range: Up to 10 m

Sample Rate: 5 samples per seconds

Power ( Display ): 0.5 W

Power ( Module ): 0.4 W

Additional features: charge timing, discharge timing

Dimensions( Display ): 1.8" - 98 x 54 x 20.8 mm
