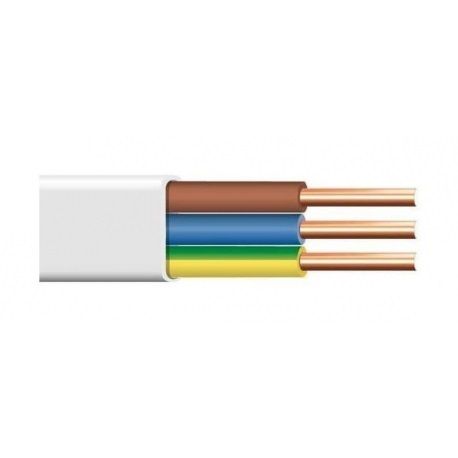

Kabelis 3x2,5 mm², 25 m spole, balts, plakans, ciets vadītājs YDYp
Kopā iegādātās preces
Piegādes termiņi
Piegāde uz norādīto ar adresi ar kurjeru (1-4d.d., ja prece ir noliktavā)
Piegāde uz norādīto ar adresi ar kurjeru (1-4d.d., ja prece ir noliktavā)
Vairāk par 35,00 € (Pasūtījumi līdz 1000 kilogrami) | Bez maksas |
Līdz 35,00 € (Pasūtījumi līdz 1000 kilogrami) | 3,99 € |
Piegāde uz DPD Paku skapi (1-4d.d., ja prece ir noliktavā)
Piegāde uz DPD Paku skapi (1-4d.d., ja prece ir noliktavā)
2,50 €
Preces apraksts
The cable is designed for fixed installation, to lie beneath the plaster or in cable ducts. The cable is suitable for installation in wet and dry premises.
Soft solid conductor is made out of annealed copper wire. It is easy to connect conductors to plug contacts.
Not suitable for laying in underground or water.
Additional information
The cable fully complies with the EU Directive 2011/65/ES on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
The cable fully conforms to the requirements of the EU Directive 2006/95/EB for Low Voltage.
The cable conformed with Regulation (EU) No 305/2011 of the European Parliament and of the Council.
Reaction to Fire Class Eca. DoP (Declaration of Performance LK-DoP 01/001/EN)
| Conductor resistance at +20°C | In accordance with LST EN 60228+AC |
| Conductor working temeprature, max. | +70°C (under normal conditions) + 160°C (in the event of short circuit) |
| Rated voltage U/U0 | 300/500 V |
| Minimum bending radius | > 5 times the cable diameter |
| Operating temperatures | Mounting -5°C - +40°C Operating -30°C - +70°C |
| Insuliation | PVC insulation compound type TI1, TI2 in accordance with LST EN 50363-3 |
| Number of cores | 3 |
| Cross-sectional area ofcores, mm² | 2.5 |
| Radial thickness of insuliation, mm | 0.5 |
| Radial thickness of scheath, mm | 0.6 |
