LED digitālais lentes kontrolieris 5-24V, Bluetooth, 1024 PIX

Description:

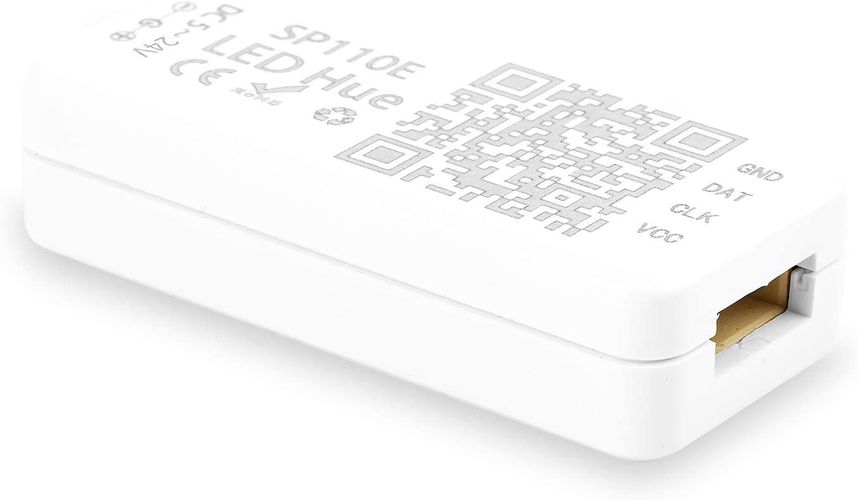

Wireless Bluetooth Controller SP110E iOS/Android APP for WS2811, WS2812B, SK6812RGB, SK6812RGBW 3pin LED Strip, Pixel Module, Panel Light

Features:

• DC5V DC12V DC24V wide working voltage, preventing reverse connection of power supply, protecting LED light and controller. DC5V WS2812B LED strip, please use only DC5V power adapter.

• WIDE COMPATIBILITY. Support Smart LED IC: WS2811, WS2812B, SK6812RGB, SK6812RGBW. Can not control RGB RGBW 5050 led strip which has no IC.

• Convenient - IOS and Android APP control via Bluetooth 4.0 or later version. Long control distance, convenient to use. Support IOS 10.0 and Android 4.4 or later version.
• APP Control . The APP's name is LED Hue. Suit for IOS 10.0 / Android 4.4 . More stable and simpler . Can adjust the color order RGB/RBG/BRG/BGR/GRB/GBR . Select WS2811 IC to control WS2811 and WS2812B . Select SK6812 to control SK6812RGB . Select SK6812RGBW to control SK6812RGBW LED strip .

• Adjust Speed and Brightness. The app can control the Speed and the brightness . 120 Kinds of lighting effect .

• Two mode control . Auto mode : The controller selects the lighting effect automatically . Manual mode: Select the lighting effect that you like . You also can mark your favorite effects.

• Small and convenient. It is the smallest and most stable bluetooth controller for the addressable led strip .Easy to use


Technical parameters:

Practical advises:

• Working voltage: DC5V-24V. The controller cannot regulate the output voltage at the VCC. That means the output voltage of your power supply must be the same as the work voltage of your led lights. If your led light is 5V, please use 5V power supply. Never use 12V or 24V power. Otherwise, the led lights will be damaged.

• Select WS2811 IC to control WS2811 and WS2812B. Select SK6812 to control SK6812RGB. Select SK6812RGBW to control SK6812RGBW LED strip.

• The controller only supports LED lights with smart IC. It cannot support ordinary RGB/RGBW LED strip without IC.

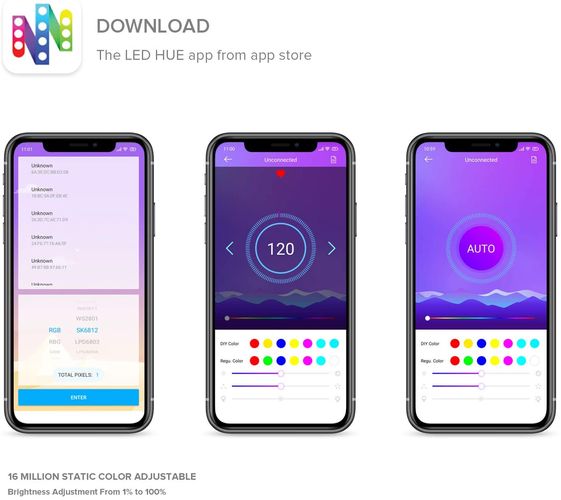

• Search “LED Hue” or scanning the QR code on the operating instructions to download and install the App.

• Please use a power supply not a battery to power the controller. The output power of power supply must be more than the max power of led light. For example, if the work voltage and max amp of your led light is 5V 10A 50W, power supply output must be 5V 10A 50W at least. Otherwise, it will work smoothly.

• If the color is wrong, for example, you choose the red, but the color of the light strip is green, you need to choose a different settings, such as RGB, RBG, GRB, GBR, BGR or BRG


Package:

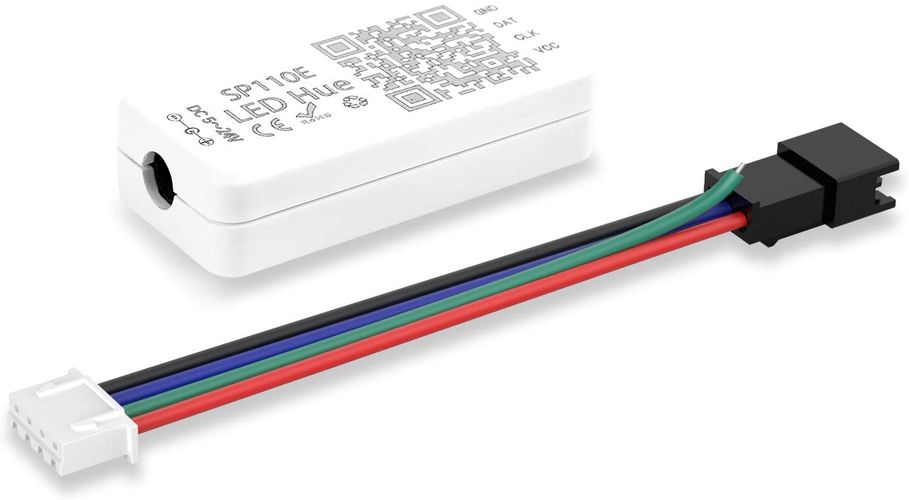

• 1x SP110E Bluetooth LED controller

• 1x 3pin male SM connector

• 1x User manual
