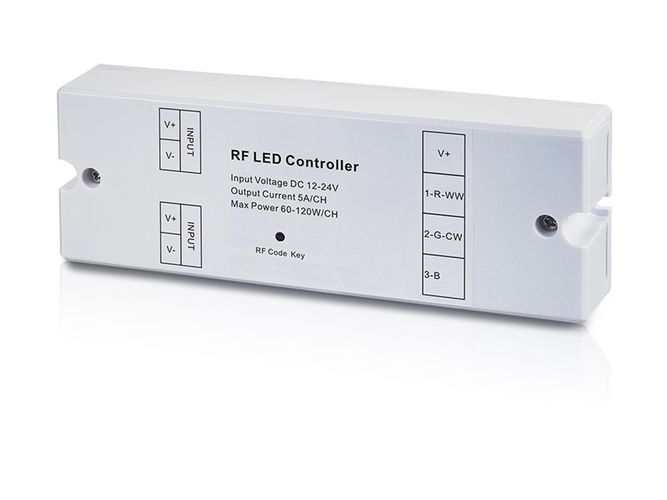

LED kontrolieris SR-2839 signāla uztvērējs 12-24 Vdc 3x5A, RGB, Eco-RF, Sunricher
LED kontrolieris SR-2839 signāla uztvērējs 12-24 Vdc 3x5A, RGB, Eco-RF, Sunricher
Svars | 0.086 kg. |
Garantijas periods (mēneši) | 36 |
Zīmols | Sunricher |
Piegādes termiņi
Piegāde uz norādīto ar adresi ar kurjeru (ieteicams)
Vairāk par 35,00 € (Pasūtījumi līdz 1000 kilogrami) | Bez maksas |
Līdz 35,00 € (Pasūtījumi līdz 1000 kilogrami) | 3,99 € |
Piegāde uz DPD Paku skapi (ieteicams)
2,50 €
Preces apraksts
Svars | 0.086 kg. |
Garantijas periods (mēneši) | 36 |
Zīmols | Sunricher |
RGB controller SR-1029 must be used with remote controller SR-2839.
Voltage: 12-24Vdc
Max power: 3x5A (60-120W)
Size: 145x46.5x16mm
Waterproof: IP20
Radio freaquency: 868/915/434mhz
Operation:
Do wiring according to connection diagram.
Pair RF Receiver with RF remote:
1. Connect and wire up the RF receiver correctly, power on.
2. Turn on the remote, click the “RF Code Key” button on receiver, immediately click a zone number to pair
the receiver to the specified zone if the remote is a multi-zone controller (if it is a single zone remote, this
step is unnecessary), then touch the color wheel or slider bar on the remote (if the remote does not have
color wheel or slider bar, click or touch any keys), the connected led light on receiver flickers twice, which
means well paired.
Note: one receiver can be paired with max 8 remote controls.
Delete the pairing:
1. Wire up the RF receiver correctly, power on
2. Hold down the “RF Code Key” button on receiver for over 3 seconds until the connected led light on
receiver flickers twice, which means well deleted
Noderīga informācija
Specifikācijas
Artikuls | 268738 |
Svars | 0.086 kg. |
Garantijas periods (mēneši) | 36 |
Zīmols | Sunricher |
Savienojuma tips.. | Sunricher ECO-RF |
Veids | kontrolieris |
Kontrole | RGB |
Vadības strāva, mA | Sunricher ECO-RF |
NomNr | SR-1029 |
Ieejas spriegums DC līdz, V | 12 |
Strāva, A | 15 |
Ieejas spriegums līdz, V | 24 |
