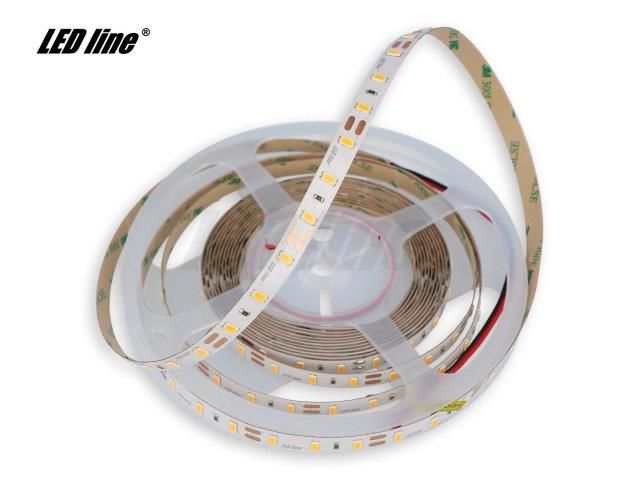

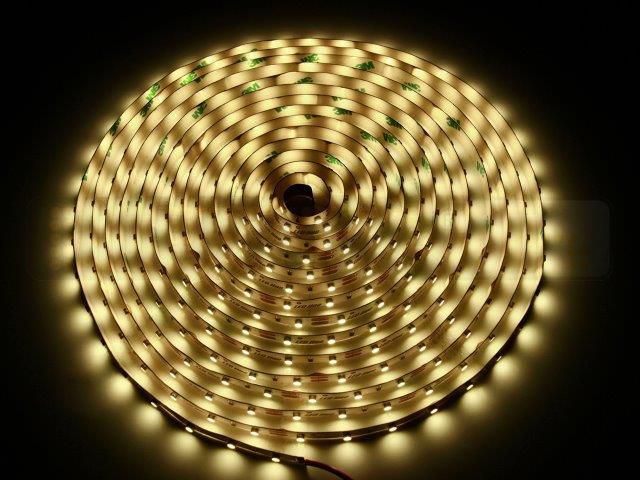

LED line® lenta 300 SMD5630 24V SAMSUNG 2700K 18w/m
LED line® lenta 300 SMD5630 24V SAMSUNG 2700K 18w/m
| Svars | 0.025 kg. |
| Zīmols | LED line |
Piegādes termiņi
Piegāde uz norādīto ar adresi ar kurjeru (1-4d.d., ja prece ir noliktavā)
Piegāde uz norādīto ar adresi ar kurjeru (1-4d.d., ja prece ir noliktavā)
Vairāk par 35,00 € (Pasūtījumi līdz 1000 kilogrami) | Bez maksas |
Līdz 35,00 € (Pasūtījumi līdz 1000 kilogrami) | 3,99 € |
Piegāde uz DPD Paku skapi (1-4d.d., ja prece ir noliktavā)
Piegāde uz DPD Paku skapi (1-4d.d., ja prece ir noliktavā)
2,50 €
Preces apraksts
| Svars | 0.025 kg. |
| Zīmols | LED line |
Rated power: 24V DC
Temperatura barwowa: 2700K
Luminous flux (meter): 1650 lm (+/- 10%)
Luminous flux (5 meters): 8250lm
Power consumption: 18 W (+/-5%)
Power consumption (roll of 5 meters strip): 90 W (+/-5%)
Power consumption - amperage (meter): 0,75A
Power consumption - amperage (roll of 5 meters): 3,75A
LED type: SMD5630
Beam angle: 120Ā°
Cut sections:: 10cm
Material type: dwuwarstwowy laminat PCB o grubości 3oz.
Material colour: white
Colour rendering index: ā‰ 80
Dimensions (W. x H.):: 10 x 2,5 (mm)
Life span: 30 000 hours
IP protection class: not protected
Lamp warm-up time to 60%: 1s
Number of on/off cycles: 50 000
Luminous flux after 30 000 h: 0.7
Reaction time: >0,5 s
Power factor:: ā‰ 0,5
Dimmer compatibility:: PWM dimmers only
Weight with packaging: 42g
Maksymalne zamĆ³wienie: 1000 szt.
Maksymalne zamĆ³wienie HURT: 1000 szt.
Noderīga informācija
Specifikācijas
| Artikuls | 298244 |
| Svars | 0.025 kg. |
| Svītrkodi | 5901583247743 |
| Jauda, W | 18 |
| Zīmols | LED line |
| IP klase | IP20 |
| LED tonis | Silti balta |
| LED tips | SMD5630 |
| Veids | LED lenta |
| NomNr | 247743 |
| Ieejas spriegumi, V | 24 |
| Jauda, W | 18 |
| Ieejas spriegumi, V | 24 |
Piegādātāja prece apraksts
LED strip designed for specialist lighting applications. This item comes with a colour temperature of 2700 K Wavelength This LED strip is supplied in rolls of 5. This item is equipped with diodes of the following type: SMD5630. With current consumption of 0,75 it achieves a luminous efficacy of 92 lm/W whilst maintaining the power consumption of 18 W per metre. The luminous flux provided by 1m section of the LED strip is 1650lm. This LED strip is powered by constant voltage of 24 DC. The LED's beam angle is 120 °. LED quantity per 1m section of LED strip is 60. The amout of copper (expressed in ounces) used for this item's PCB is: 3.
The compatible dimmer type: PWM. The ingress protection rating for this item is IP20. The CRI colour rendering index is The Ra colour rendering index is 80. The cutting section is 10. Type of adhesive tape - 3M 300 LSE guarantees easy and the strongest adhesion to the substrate. The lifespan of each single diode which this item is equipped with is over 100000. The Energy class is A+. Ambient temperature suitable for operation `-20 ÷ 45 °C. For indoor use.
Noderīga informācija
Piegādātāja preces parametri
| Ambient temperature suitable for operation | `-20 ÷ 45 |
| Angle for useful luminous flux (EPREL) | Sphere 360 degrees |
| Beam angle | 120 |
| Beam angle in degrees (EPREL) | 120 |
| Chromaticity coordinates x i y (EPREL) | 0.46|0.411 |
| Colour consistency in McAdam ellipses | ≤3 |
| Colour of the light | White |
| Colour rendering index Ra | 80 |
| Colour-tuneable light source (EPREL) | No |
| Compatible dimmer type | PWM |
| Connected light source (EPREL) | No |
| Correlated colour temperature | 2700 |
| Current (1m) | 0,75 |
| Cutting section | 10 |
| Date of first placement on the market | 01.12.2019 |
| Dimmable function | Yes |
| Energy class | A+ |
| Energy efficiency class 2019/2015 | F |
| EPREL ID | 632009 |
| For indoor use | YES |
| Form of the product (EPREL) | Dotyczy 50cm taśmy |
| Full box quantity | 75 |
| GPC classification | 10003056 - Accent lighting |
| GS1 unit | m |
| Height | 2,5 |
| IEC protection class | III |
| IP protection rating | 20 |
| Is the product equipped with an integrated light source? (EPREL) | No |
| Is this product a light source? (EPREL) | Yes |
| Laminate (colour) | White |
| Laminate (thickness) | 3 |
| Lamp's warm-up time to 60% | 1 |
| LED manufacturer | SAMSUNG |
| LED quantity (1m) | 60 |
| LED type | SMD5630 |
| Lifespan | 100000 |
| Lifetime L70B50 | 50000 |
| Luminous efficacy | 92 |
| Luminous flux (1m) | 1650lm |
| Mains or non- mains light source (EPREL) | NMLS |
| Master carton weight (kg) | 10,5 |
| Metres per roll | 5 |
| Minimum purchase quantity | 5 |
| Net content of the product | 5 |
| Non-directional or directional light source (EPREL) | NDLS |
| Not dimmable | TAK |
| Number of on/off cycles | 50000 |
| On-mode power Pon (EPREL) | 9 |
| Product code | 247743 |
| Product weight with packaging (g) | >0,7 |
| R9 colour rendering index value (EPREL) | 65 |
| Status | Active (on sale) |
| Supply voltage range and voltage type | 24 DC |
| Survival factor | 0.9 |
| The lumen maintenance factor | 96 |
| Type of adhesive tape | 3M 300 LSE |
| Total luminous flux (EPREL) | 900 |
| Useful luminous flux Φuse (EPREL) | 900 |
| Warranty (years) | 5 |
| Wattage (1m) | 18 |
| Width | 10 |
