LED panelis 30W, 60x60cm, 3600lm, 4000K, virsma SLIM, 2in1, LED LINE

Produkta nr.: 478481
no gallery

LED panelis 30W, 60x60cm, 3600lm, 4000K, virsma SLIM, 2in1, LED LINE

Produkta nr.: 478481
Svars2.45 kg.
Garantijas periods (mēneši)60
ZīmolsLED line

Cenu robežas

DaudzumsCena ar PVN (gab.)
1
61.95
2+
55.76
B2B

Min. daudzums: 1

Mērvienība: gab.

Kopā:

61.95

lemona shopJa preces ir pieejamas LEMONA electronics veikalā tās varat saņemt jau nākamajā darba dienā.

home deliveryPiegāde uz klienta adresi 1-2 d. d.


Piegādes termiņi

lemona shop

Saņemšana Lemona veikalā

Saņemšana Lemona veikalā Bez maksas

Pasūtījumi tiek apstrādāti un atlasīti darba dienās no pulksten 8:00 līdz 17:00. Kad pasūtījums būs gatavs saņemšanai, Jūs par to tiksiet informēti īsziņā.

Atlikums noliktavā

Ir5 gab.
Veikals
Ir>20 gab.
Noliktava
home delivery

Piegāde uz norādīto ar adresi ar kurjeru (ieteicams)

Piegāde uz norādīto ar adresi ar kurjeru (ieteicams)

Vairāk par 35,00 €

(Pasūtījumi līdz 1000 kilogrami)

Bez maksas

Līdz 35,00 €

(Pasūtījumi līdz 1000 kilogrami)

3,99 €

Preces apraksts

Svars2.45 kg.
Garantijas periods (mēneši)60
ZīmolsLED line
This product’s power is 30 W and its light’s colour temperature is 4000 K. This item is equipped with diodes of the following type: JUFEI 4014. This item achieves luminous efficacy of 120 lm/W. This item achieves a luminous flux of 3600 lm. The LED's beam angle is 120 °.

The supply voltage range suitable for this item is 220-240V AC.

The ingress protection rating for this item is IP20. The safety and vision comfort is guaranteed by the low UGR rating

The item's high resistance to mechanical damage is guaranteed by the use of dedicated material which the diffuser/cover is made of - polycarbonate

The Ra colour rendering index is 80.

The lifespan of each single diode which this item is equipped with is over 30000. The power factor is PF> 0,9. The number of on/off cycles is 20000.

The diffuser is made of: PMMA The Energy class is .

The IEC protection class is: II.

Specifikācijas

Artikuls374649
Svars2.45 kg.
Svītrkodi5907777478481
Garantijas periods (mēneši)60
ZīmolsLED line
Gaismas plūsma, lm3600
Lampas formaKvadrāts
Apgaismojuma krāsaneitrāli balta
NomNr478481
Jauda, W30
Jauda, W30

Piegādātāja prece apraksts

Panel 2in1 from the LED line® series is a brand new offering for the Polish market, developed with end users and installers in mind.

The panel enables mounting in a suspended ceiling system or on surfaces. There is no need for additional frames on the job, which significantly lowers the installation costs and streamlines work - one installer can mount 50 2in1 fixtures in a day instead of 20 regular framed panels.

The panel is designed for indoor installation. The fixture’s housing is built in line with modern Yellow Free technology, which prevents it from yellowing and keeps the slick appearance for years. The panel’s housing features an integrated power supply unit.

The 2in1 Panel is delivered with surface mounting accessories: wall plugs, screws, mounting hole plugs. The set also contains a quick-coupler for easier installation in a suspended ceiling system.

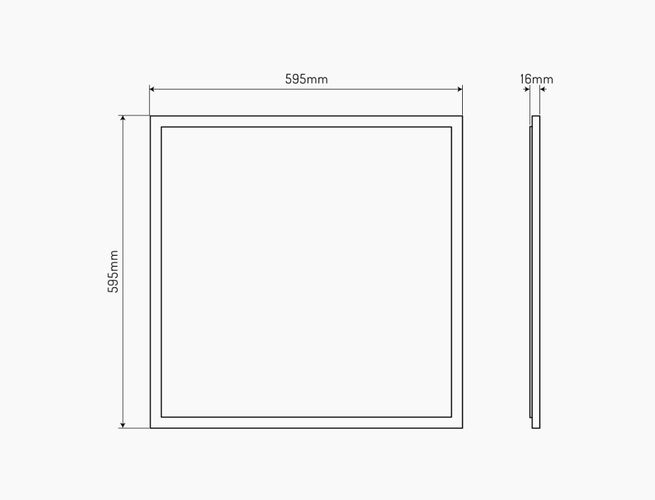

  • Dimensions: 595x595x16 mm
  • Supply voltage range: 220-240 V AC
  • Ingress protection class - IP20
  • The product’s damage resistance is ensured by the lampshade material – polycarbonate • Colour rendering index: Ra ≥ 80
  • Each diode has over 30000 hours of durability. Power Factor: PF > 0.9. Number of on/off cycles: 20000.
  • The diffuser of light emitted by LEDs is made of: PMMA
  • Energy efficiency class: E (A++ according to legacy regulations)
  • Electric shock protection class: II.

The product is covered by a 5-year warranty.

Piegādātāja preces parametri

Colour-tuneable light source (EPREL)No
Correlated colour temperature4000
Date of first placement on the market01.04.2022
DimmableNO
Dimmable functionNo
Displacement factor Df0.9
Energy efficiency class 2019/2015E
EPREL ID1116349
Flicker FreeYES
Flicker metric PstLM1
For indoor useYES
Frequency of the supply voltage50/60Hz
Full box quantity8
GPC classification10005639 - Lighting - permanently mounted
Height16
IEC protection classII
IK protection rating02
Installation method2in1 recessed and surface
IP protection rating20
Is the product equipped with an integrated light source? (EPREL)No
Is this product a light source? (EPREL)Yes
Jednostka gs1szt
Lamp's warm-up time to 60%1
LED quantity196
LED typeJUFEI 4014
Length595
LGPPMMA
Lifespan50000
Lifetime L70B5050000
Luminous efficacy120
Luminous flux3600
Master carton weight (kg)21
Material (cover)polycarbonate
Material (housing)aluminum
Networked standby power Pnet (EPREL)30
Non-directional or directional light source (EPREL)NDLS
Number of on/off cycles20000
On-mode power Pon (EPREL)30
Painting techniquePowder coated
Power Factor0,9
Product code478481
Product weight with packaging (g)2450
R9 colour rendering index value (EPREL)6
StatusActive (on sale)
Stroboscopic effect metric SVM0.4
Supply voltage range and voltage type220-240V AC
Survival factor0.9
The lumen maintenance factor96
Total luminous flux (EPREL)3600
UGR ratingUGR<22
Useful luminous flux Φuse (EPREL)3600
Warranty (years)5
Wattage30
Width595
Working current0,1449
Zawartość netto produktu1
Ambient temperature suitable for operation`-20 ÷ 45
Angle for useful luminous flux (EPREL)Sphere 360 degrees
Beam angle120
Beam angle in degrees (EPREL)120
Chromaticity coordinates x i y (EPREL)0,38|0,377
ColourWhite
Colour consistency in McAdam ellipses≤6
Colour of the lightWhite
Colour rendering index Ra80
