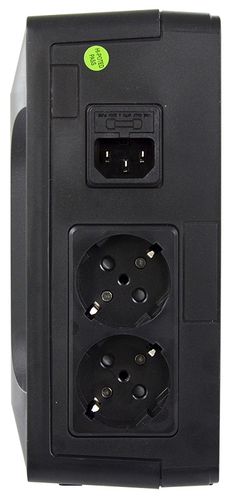

Nepārtrauktās barošanas avots (UPS) NANO 800VA 480W, Offline, FSP
Nepārtrauktās barošanas avots (UPS) NANO 800VA 480W, Offline, FSP
Svars | 3.66 kg. |
Zīmols | FSP |
Piegādes termiņi
Piegāde uz norādīto ar adresi ar kurjeru (ieteicams)
Vairāk par 35,00 € (Pasūtījumi līdz 1000 kilogrami) | Bez maksas |
Līdz 35,00 € (Pasūtījumi līdz 1000 kilogrami) | 3,99 € |
Piegāde uz DPD Paku skapi (ieteicams)
2,50 €
Preces apraksts
Svars | 3.66 kg. |
Zīmols | FSP |
Features
- Compact size with stand and mounting flexibility
- Excellent microprocessor control guarantees high reliability
- Auto restart while AC is recovering
- Simulated sine wave
- Cold start function
- Full protection: discharge, overcharge, short circuit, and thermal protection
- Off-line technology
- Automatic switch-on when the power supply is restored
- Simple and easy installation and operation
Technical data
MODEL | NANO 400 | NANO 600 | NANO 800 |
PHASE | Single phase | ||
CAPACITY | 400VA / 240W | 600VA / 360W | 800VA / 480W |
PARALLEL CAPABILITY | NO | ||
INPUT | |||
Nominal Voltage | 220V/230V/240V AC | ||
Voltage Range | 180-270 Vac | ||
Frequency Range | 50Hz (auto sensing) | ||
Power Factor | - | ||
OUTPUT | |||
Output Voltage | - | ||
AC Voltage Regulation (Batt. Mode) | ± 10% | ||
Frequency Range (Synchronized Range) | - | ||
Frequency Range (Batt. Mode) | 50Hz ±1 Hz | ||
Current Crest Ratio | - | ||
Harmonic Distortion | - | ||
Transfer time AC mode to Battery mode | Typical 2-6 ms | ||
Transfer time Inverter to Bypass | - | ||
Waveform (Batt. Mode) | Simulated Sine Wave | ||
Overload AC Mode | - | ||
Overload Battery Mode | - | ||
EFFICIENCY | |||
AC Mode | - | - | - |
ECO Mode | - | - | - |
Battery Mode | - | - | - |
BATTERY | |||
Battery Type | 12V / 4.5Ah | 12V / 7Ah | 12V / 9Ah |
Numbers | 1 | 1 | 1 |
Typical Recharge Time | 8 hours recover to 90% capacity | ||
INDICATORS | |||
AC mode | Green lighting | ||
Battery mode | Green flashing | ||
ALARM | |||
Battery mode | Sounding every 10 seconds | ||
Low battery | Sounding every second | ||
Overload | - | ||
Fault | Continuosly sounding | ||
PROTECTION | |||
Full Protection | Overload, discharge and overcharge protection | ||
PHYSICAL | |||
Dimension, D X W X H (mm) | 228 x 82.5 x 207 (Vertically stand) | ||
Net Weight (kgs) | 2.2Kg | 2.7Kg | 3.1Kg |
ENVIRONMENT | |||
Operation Temperture | 0-40°C | ||
Operation Humidity | 0 - 90 % and non-condersing | ||
Noise Level | Less than 40dB @ 1 meter | ||
MANAGEMENT | |||
Smart RS-232/USB | - | ||
Optional SNMP | - | ||
Product specifications are subject to change without further notice |
Noderīga informācija
Specifikācijas
Artikuls | 350659 |
Svars | 3.66 kg. |
Svītrkodi | 4711140484785 |
Ieejas spriegums AC no, V | 220 |
Baterijas Tips. | 12V |
Zīmols | FSP |
Ieejas spriegums AC līdz, V | 240 |
NomNr | PPF4800305 |
Augstums, mm | 207 |
Jauda, W | 480 |
Platums, mm | 82.5 |
Dziļums, mm | 228 |
Jauda, W | 480 |
