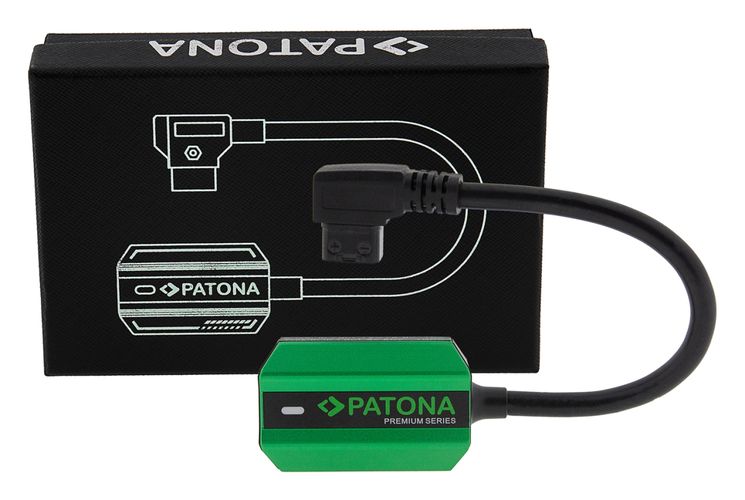

PATONA Premium PD100W multifunctional D-Tap to USB-C adapter for mobile power supply, PATONA

The PATONA PD100W is an adapter from D-Tap to USB-C. As a special highlight: the power supply works in both directions, i.e. the battery can supply and receive power with this adapter. Due to its size and weight, it is smaller and lighter than a conventional charger.

Application options:

1.) The battery supplies power: The device to be charged is connected to the adapter via the USB-C port, the D-Tap plug of the adapter is connected to the D-Tap output of the battery.
2.) The battery receives power: A USB power adapter is connected to the USB-C output, the D-Tap plug of the adapter is connected to the D-Tap output of the battery. The battery is now charged.

Technical data:

• Bi-directional transfer from D-Tap to USB-C
• Maximum power transmission: 100W
• D-Tap output / input: 12V - 16.8V, 10A
• USB-C output / input: 3V - 20V, 5A
• Intelligent recognition of charging protocols
• supported charging protocols: FCP, AFC, SCP, DRP, Try SRC, PD3.0, QC2 / QC3.0 / QC3.0+
• Automatic adjustment of the output voltage
• Protection against over/under voltage, short circuit and overload of the battery
• With silicone heat protection bumper
• Stand-by current consumption: 0.18mA
• LED indicator light (blue light during operation, no light when not connected)
• Material: aluminum alloy, plastic
• Dimensions: 250 x 35 x 17mm (L x W x H)
• Weight: 66gr
• Brand: PATONA Premium

Compatibilities:

• compatible with Samsung SFC/AFC and PPS as well as QC, PD and Huawei SCP

Examples of charging times:*

• 95Wh Li-ion battery: 50 minutes; 80 % charging capacity
• 145Wh Li-ion battery: 75 minutes; 80 % charging capacity
• 284Wh Li-ion battery: 215 minutes; 80 % charging capacity

*data without guarantee
