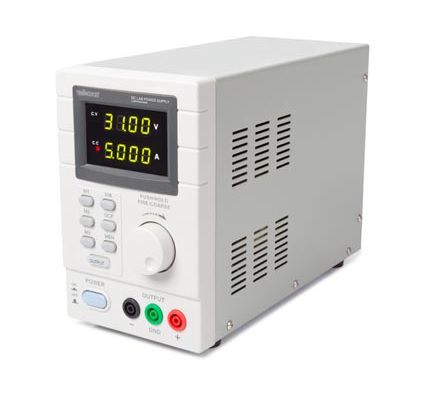

Programmējams barošanas avots 0-30 Vdc 0-5A, impulsu
Produkta nr.: LABPS3005DN
Programmējams barošanas avots 0-30 Vdc 0-5A, impulsu
Produkta nr.: LABPS3005DN
Svars | 5.56 kg. |
Garantijas periods (mēneši) | 12 |
Zīmols | Velleman |
Piegādes termiņi
Piegāde uz norādīto ar adresi ar kurjeru (ieteicams)
Vairāk par 35,00 € (Pasūtījumi līdz 1000 kilogrami) | Bez maksas |
Līdz 35,00 € (Pasūtījumi līdz 1000 kilogrami) | 3,99 € |
Piegāde uz DPD Paku skapi (ieteicams)
Pēc preču nodošanas kurjeram mēs Jūs informēsim e-pastā. Bezmaksas piegāde pasūtījumiem virs 35 EUR.
2,50 €
Preces apraksts
Svars | 5.56 kg. |
Garantijas periods (mēneši) | 12 |
Zīmols | Velleman |
Features
- LED display for voltage and current
- protection mode: current-limiting
- memory: 5 programmable memories
- colour: white-grey
- indoor use only
- pollution degree II
- computer connectivity: PC remote control via USB
- software V 1.05 included for: Windows® XP, Vista, W7, W8, W8.1, W10 (32 bits + 64 bits)
Not compatible with Apple® - fuse-protected
Specifications
- input voltage: 230 VAC 50 Hz 1.5 A 345W pf: 0.8
- output voltage: 0-30 VDC adjustable max.
- output current: 0-5 A adjustable max.
- ripple voltage: =/< 1 mV
- ripple current: 3 mA
- fuse: 2A / 250V
- max. relative humidity: < 80%
- altitude: max. 2000 m
- operating temperature: 0°C - 40°C
- dimensions: 115 x 190 x 240 mm
- weight: 5.3 kg
Noderīga informācija
Specifikācijas
Artikuls | 271972 |
Svars | 5.56 kg. |
Svītrkodi | 5410329679835 |
Garantijas periods (mēneši) | 12 |
Ieejas spriegums AC no, V | 230 |
Zīmols | Velleman |
Kanālu skaits, gab. | 1 |
Ieejas spriegums AC līdz, V | 230 |
NomNr | LABPS3005DN |
Augstums, mm | 245 |
Platums, mm | 291 |
Izejas spriegums līdz, V | 0 |
Izejas spriegums DC līdz, V | 30 |
Izejas strāva DC no, A | 0 |
Izejas strāva DC līdz, A | 5 |
Dziļums, mm | 200 |
Piegādātāja prece apraksts
Our high-quality lab power supplies operate in both constant voltage and constant current mode. Our lab power supplies effortlessly switch to Constant Current mode when overloaded, providing a constant maximum output. If a short circuit occurs, you don't have to worry, because our power supplies are equipped with automatic current limiting (unless you have set a lower current value).
Noderīga informācija
Informācija, ko sniedz piegādātājs var atšķirties no paša produkta. Ja pamanījāt nesakritības lūdzam ziņot mums rakstot uz [email protected].
