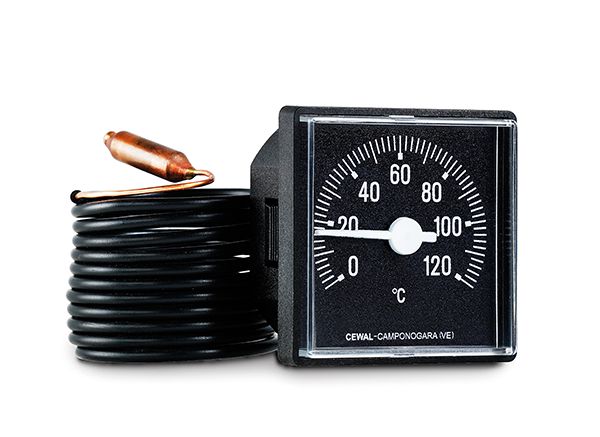

Termometrs ar kapilāru 0-120C 1.5M
Kopā iegādātās preces
Piegādes termiņi
Piegāde uz norādīto ar adresi ar kurjeru (1-4d.d., ja prece ir noliktavā)
Piegāde uz norādīto ar adresi ar kurjeru (1-4d.d., ja prece ir noliktavā)
Vairāk par 35,00 € (Pasūtījumi līdz 1000 kilogrami) | Bez maksas |
Līdz 35,00 € (Pasūtījumi līdz 1000 kilogrami) | 3,99 € |
Piegāde uz DPD Paku skapi (1-4d.d., ja prece ir noliktavā)
Piegāde uz DPD Paku skapi (1-4d.d., ja prece ir noliktavā)
2,50 €
Preces apraksts
APPLICATIONS
The capillary thermometer have long been used in a wide variety of applications where it is useful or necessary to read the temperature on an instrument panel, taking it from a distance. The most common application for model TQ 45 P is certainly on boilers. Often the various brands of boilers or refrigerated counters require customisations for technical or aesthetic reasons.
MAIN FIELDS OF APPLICATION
The main equipment that use TQ 45 P as their first use or as a replacement for maintenance are:
- boilers
- equipment for bars and restaurants
NORMATIVE REFERENCES
- UNI EN 13190 precision class 2
- degree of protection IP31 according to EN 60529
OPERATING LIMITS
Temperatures
On the body of the thermometer -20 ÷ +70 °C
On the bulb, in normal operation, up to 3/4 of the full scale value
For short periods up to full scale
CONSTRUCTION FEATURES
- black reinforced nylon casing
- crystal clear methacrylate window
- copper capillary covered with black PVC
- copper bulb insertable also on pocket
- movement: phosphorous bronze spiral
- prepainted aluminium dial black background and white graphics
- graduated scale 0/120 °C
- weight 55 gr
