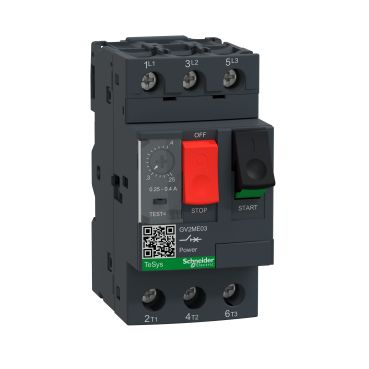

Motor circuit breaker, TeSys GV2, 3P, 0.25-0.4 A, thermal magnetic
Technical data
| Poles Description | 3P |
| Network Type | AC |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Network Frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| [In] Rated Current | 0.4 A |
| Motor Power Kw | 0.09 kW at 400/415 V AC 50/60 Hz |
| Thermal Protection Adjustment Range | 0.25…0.4 A conforming to IEC 60947-4-1 |
| Control Type | Push-button |
| Phase Failure Sensitivity | Yes conforming to IEC 60947-4-1 |
| Power Dissipation Per Pole | 2.5 W |
| Fixing Mode | 35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate) |
| Mechanical Durability | 100000 cycles |
| Electrical Durability | 100000 cycles for AC-3 at 415 V In; 100000 cycles for AC-3e at 415 V In |
| Ik Degree Of Protection | IK04 |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Ambient Air Temperature For Operation | -20…60 °C |
| Dimensions | 45mm x 89mm x 78.5mm |
| Net Weight | 0.26 kg |
