Viedā dārza apūdeņošanas kontrole, ZigBee, TUYA, WOOX

Product Details

• Remote access - control your smart Power strip from anywhere with your tablet or smartphone using the free woox home app, TUYA app or SMART LIFE app.
• control your garden watering/irrigation process

• connectable with a WOOX Zigbee gateway like R7070

• gives you the possibility to start or stop the irrigation of your garden whenever you like to

• control the R7060 by the free WOOX Home app

• voice control by Google Assistant or Amazon Alexa is supported

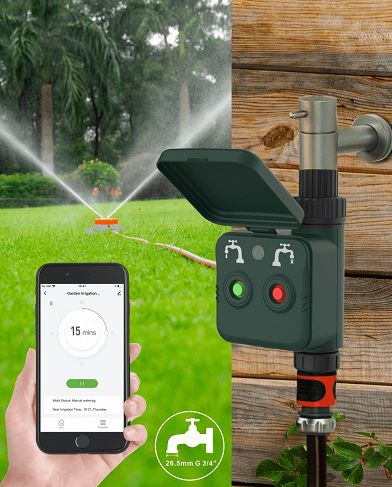

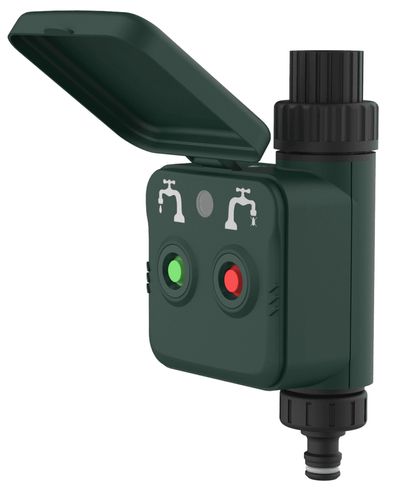

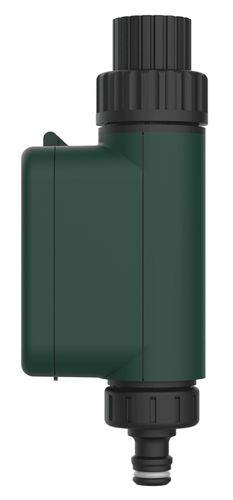

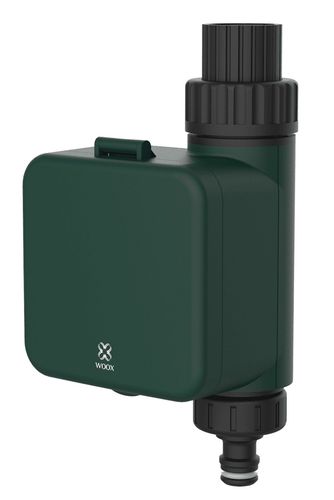

Never forget to water your garden, full distance control enabled by WOOX Home. The WOOX Home R7060 Smart Garden Irrigation Control automatically controls the water supply in your garden, and thus ensures the flexible irrigation of your plants in accordance with requirements. The irrigation times can be conveniently adjusted using your Smartphone or Tablet via the WOOX Home smart App. The R7060 works on the Zigbee protocol and needs to be connected for operation with a WOOX Zigbee gateway like the R7070 (not included).

Power

The WOOX R7060 is powered by 4pcs AA batteries (included in package) which have a lifetime of 6 months before you need to replace them. In the WOOX Home app you will receive an alert when the battery is getting low.

Connection

The WOOX R7060 is installed directly on your water output, water crane. It supports the standard outdoor water crane input of 26.5mm G 3/4” and comes including an extra male quick-fix adapter for 1/2” quick-fix fittings which are mandatory in the consumer outdoor watering market. On the R7060 you are also able to connect a 3/4” male connector enabling a wider user satisfaction and gives multiple possibilities to connect your desired output watering system. The R7060 supports a water pressure range of 0.2 to 0.7 MPa.

Control your garden irrigation

The WOOX R7060 gives you the possibility to water your garden whenever you like to. In the WOOX Home app you connect the R7060 Smart Garden Irrigation Control to your WOOX Zigbee gateway. Once connected you can start or stop the water output of the water crane where R7060 is connected. You can do this by the WOOX Home app or by the manual green and red button on the R7060 device itself. The WOOX Home gives you the opportunity to set watering schedules, create automations with other WOOX Home devices and enables control by Google Assistant and Amazon Alexa voice control speakers.

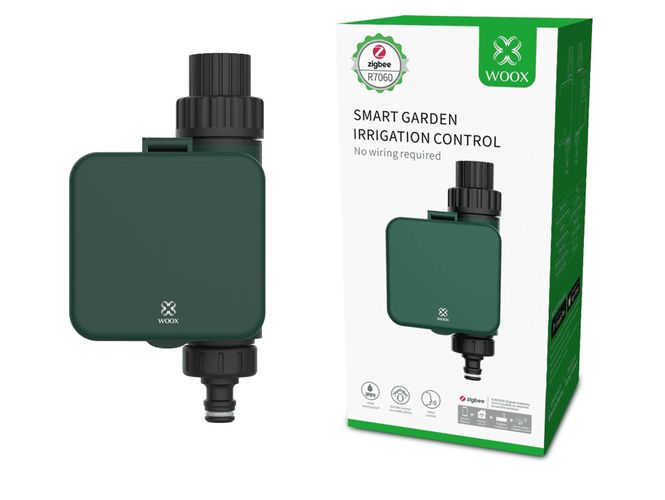

Package includes:

1. Smart Garden Irrigation Control x 1
2. AA battery x 4
3. 26.5mm G 3/4" adapter x 1
4. Multi-language user manual

Specifications:

Physical specification

• Wireless protcol:          ZigBee 3.0

• Transmission Power:    8.8 dBm

• Working voltage:         DC 6V

• Powered by:               1.5V AA battery * 4 (included)

• Waterproof level:        IP44

• Product Weight :         355g

• Water pressure range: 0.2~0.7 MPa

• Standby current:        20uA

• Working Current:       270mA（30mS）

• Transmission range:   10~30 meters indoor and 30~50 meters in open air (different environments will have different results)

• Working temperature: 0℃ ～+45℃

• Working humidity:      0 ～95%RH

• Low pressure alarm:   Yes

• Product size: 188mm x 96mm x 73mm


RF specification

• Zigbee module:           TYZS3

• Wireless frequency:     2.400~2.483GHz

• Net standard:              802.15.4/ZigBee

• Transmission power:    Transmission rate:       250kbps

• Channels:                   16

• Battery lifetime:          6 months
