Viena paneļa dators, Raspberry Pi 4 modelis B

Produkta nr.: RPI4-MODBP-2GB
TOP prece
    no gallery

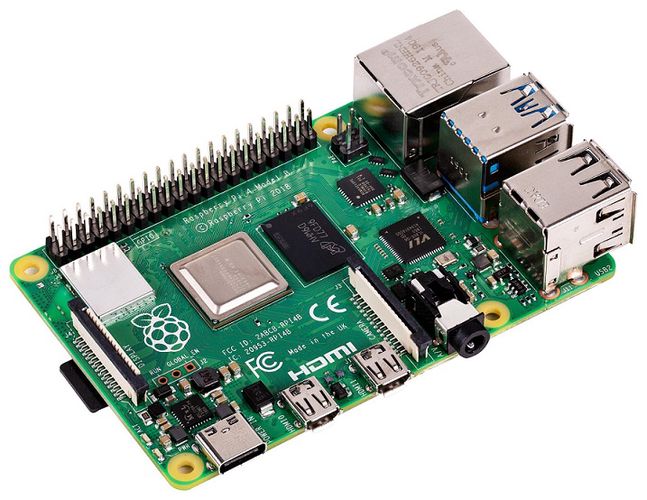

    Viena paneļa dators, Raspberry Pi 4 modelis B

    Produkta nr.: RPI4-MODBP-2GB
    TOP prece
    RASPBERRY-PI
    Svars0.066 kg.
    Garantijas periods (mēneši)12
    ZīmolsRASPBERRY-PI

    Cenu robežas

    DaudzumsCena ar PVN (gab.)
    1
    77.60
    2+
    76.04
    B2B

    Min. daudzums: 1

    Mērvienība: gab.

    Kopā:

    77.60

    lemona shopJa preces ir pieejamas LEMONA electronics veikalā tās varat saņemt jau nākamajā darba dienā.

    home deliveryPiegāde uz klienta adresi 1-2 d. d.

    Shipping parcelPiegādes uz paku skapjiem 1-2 d. d.


    Piegādes termiņi

    lemona shop

    Saņemšana Lemona veikalā

    Saņemšana Lemona veikalā Bez maksas

    Pasūtījumi tiek apstrādāti un atlasīti darba dienās no pulksten 8:00 līdz 17:00. Kad pasūtījums būs gatavs saņemšanai, Jūs par to tiksiet informēti īsziņā.

    Atlikums noliktavā

    Ir4 gab.
    Veikals
    Ir>20 gab.
    Noliktava
    home delivery

    Piegāde uz norādīto ar adresi ar kurjeru (ieteicams)

    Piegāde uz norādīto ar adresi ar kurjeru (ieteicams)

    Vairāk par 35,00 €

    (Pasūtījumi līdz 1000 kilogrami)

    Bez maksas

    Līdz 35,00 €

    (Pasūtījumi līdz 1000 kilogrami)

    3,99 €

    Shipping parcel

    Piegāde uz DPD Paku skapi (ieteicams)

    Piegāde uz DPD Paku skapi (ieteicams)

    Pēc preču nodošanas kurjeram mēs Jūs informēsim e-pastā. Bezmaksas piegāde pasūtījumiem virs 35 EUR.

    2,50 €

    Preces apraksts

    RASPBERRY-PI
    Svars0.066 kg.
    Garantijas periods (mēneši)12
    ZīmolsRASPBERRY-PI

    Long-awaited, latest version of a populat minicomputer Raspberry Pi 4 model B. This model has a more efficient processor, Broadcom BCM2711 quad-core 64-bit ARM-8 Cortex-A72 1.5 GHz, two microHDMI portstwo USB 3.0 ports and 2 USB 2.0 ports, as well as a USB-C power supply connector. In addition, the board is supplied with dual-band 2.4 GHz and 5 GHz wi-fi, Bluetooth 5 / BLE, Ethernet port with speed to 1000 Mbps and the possibility of power supply via PoE. The other characteristics remain the same as in model 3 B+. Onboard there are still: 40 pin GPIO header (2x20 pin, raster: 2.54), microSD slot for memory cards, DSI and CSI connectors, and four mounting holes.



    What is new in Raspberry Pi 4?

    FeatureDescription

    3 versions of minicomputer

    Raspberry Pi 4 is sold in three versions, differing in RAM:

    • 1 GB of RAM (RPI4-MODBP-1GB) discontinued
    • 2 GB of RAM (RPI4-MODBP-2GB)
    • 4 GB of RAM (RPI4-MODBP-4GB)
    • 8 GB of RAM (RPI4-MODBP-8GB)

    Processor BCM2711

    Chipset Broadcom BCM2711 64-bit core Quad-core ARM-8 Cortex-A72 PROCESSOR, running at 1.5 GHz offers more power than the previous Raspberry Pi models.

    2 microHDMI display ports

    Raspberry Pi 4 has two microHDMI ports, making it possible to simultaneously connect two HDMI monitors with resolutions up to 4K (4K and 60 fps for a single display, and 4K and 30 fps for two displays).
    2 USB 3.0 portsMinicomputer has 4 USB port. Two in 2.0 version and two powerful USB 3.0 ports.
    Ethernet speed up to 1000 Mbps

    Ethernet connector in full Gigabit version, ethernet provides faster cable Internet.

    USB-C power connector

    The power connector has been adapted to modern standards. Raspberry Pi has a USB-C connector. The manufacturer recommends a supply voltage of 5 V / 3 A.

    Bluetooth 5.0

    The new wireless standard, offering data transfer speeds up to 2 Mb/s.

    Layout of connectors

    The layout of the board remains the same, but the layout of the connectors has changed.



    Image and sound in minicomputer Raspberry Pi 4

    Raspberry Pi has two microHDMI ports, through which it can pass the image and sound even at 4 K and 60 fps for one display and 30 fps for two displays. Built-in 4-pin 3.5 mm Jack for headphones, speaker systems or for video output using standard RCA Composite. Raspberry Pi supports the compression standard H265 (4Kp60), H. 264 (1080p30) and graphics OpenGL ES 1.1, 2.0 and 3.0.

    Operating system for Raspberry Pi

    The drive of the minicomputer is still the microSD memory card. The manufacturer did not use memory eMMC. The operating system can be downloaded via the computer with the card reader. In our offer you will find a corresponging card with preinstalled software NOOBs that enables you to install one of systems: Raspbian, Openelec, RaspBMC, or OSMC Linux at the first run. There is also the possibility to install Windows 10 IoT independently.



    Communication in Raspberry Pi 4

    Raspberry Pi is equipped with 4 popular communication interfaces, available in a traditional PC. In addition to the previously mentioned audio and video connectors the user has at their disposal:

    • 2 microHDMI ports for simultaneous connection of two videos receivers even in 4K.



    • 2 USB 3.0 and 2 USB 2.0 ports, which can connect, for example, a mouse, a keyboard, a wi-fi card or USB flash drive. If you find that there is not enough ports, you can increase their number using an external USB HUB.



    • Ethernet connector, that has the ability to directly connect to LAN network, now in Gigabit speed.
    • WiFi module - dual band 2.4 GHz and 5 GHz, 802.11 b/g/n/ac, working with the drivers built in the latest system Raspbian / NOOBs
    • Bluetooth 5 module - is a popular wireless network in the newest 5.0 standard
    • GPIO - 40 pin GPIO header used for LEDs, buttons, motor drivers and interfaces: I2C, SPI, and UART and many more.



    Power supply of minicomputer Raspberry Pi 4

    To power up Raspberry Pi 4 you need a power supply with USB-C connector and an output voltage of 5 V. The minimum recommended current is 3 A.

    Noderīga informācija


    Specifikācijas

    Artikuls306227
    Svars0.066 kg.
    Svītrkodi765756931175
    Garantijas periods (mēneši)12
    ZīmolsRASPBERRY-PI
    NomNrRPI4-MODBP-2GB

    Piegādātāja prece apraksts

    Raspberry Pi 4 model B with 2 GB RAM. The model is equipped with two microHDMI ports, two USB 3.0 ports and 2 USB 2.0 ports as well as a USB-C power supply connector. The board also has dual-band 2.4 GHz and 5 GHz WiFi, Bluetooth 5 / BLE, Ethernet port with speed up to 1000 Mbps and the ability to supply power via PoE. The other elements are the same as in Raspberry Pi 3 B+.

    Noderīga informācija

    Piegādātāja preces parametri

    UC - Bluetoothyes
    UC - Camera interfaceyes
    UC - ConnectorUSB typ C
    UC - CoreCortex A72, 4. Quad Core
    UC - Digital pins40
    UC - Ethernetyes
    UC - External memorymicroSD card
    UC - freq1.5 GHz
    UC - HDMIyes
    UC - I2Cyes
    UC - LCD interfaceyes
    UC - Linuxyes
    UC - MicrocontrollerBCM2711
    UC - microSDyes
    UC - RAM2 GB
    UC - SPI interfaceyes
    UC - UARTyes
    UC - USB2x USB 3.0 + 2x USB 2.0
    UC - WiFiyes
    Informācija, ko sniedz piegādātājs var atšķirties no paša produkta. Ja pamanījāt nesakritības lūdzam ziņot mums rakstot uz [email protected].
