Preces apraksts
Product description

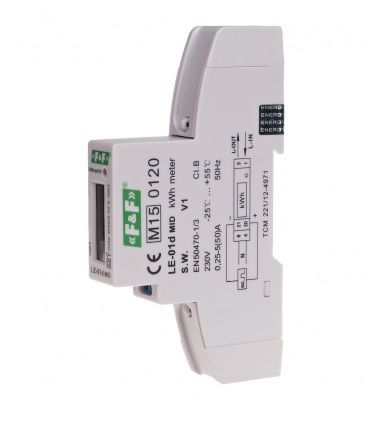

MID compliant. Single-phase. Current 50A.
LE-01d is a static (electronic) calibrated electricity meter of single-phase alternating current in a direct system.
Compliance
MID Directive 2004/22/EC
EN 50470-1/3
Functioning
A special electronic system under the influence of flowing current and applied voltage generates pulses proportional to the drawn energy. Energy consumption is indicated by a flashing LED. The amount of pulses is converted into energy input, and its value is displayed by the segment LCD display. The fractional digits represent the hundredths (.01 kWh = 10Wh).
Attention!
The meter is equipped with pulse output SO+ - SO-. This allows you to connect another pulse device (SO) that reads pulses generated by the meter.
No additional connected equipment is required for proper operation of the meter.
Technical data
| Reference voltage | 230 V AC ±30% |
| Current current | 0,25÷5 A |
| Maximum current | 50 A |
| The minimum measured current | 0,02 A |
| Counter's own consumption | 8 VA; 0,4 W |
| Scope of indication of the abacus | 0÷99999,99 kWh |
| Counter constant | (1 Wh/imp) 1000 imp/kWh |
| Reading signaling | LED red |
| Pulse output SO + SO- | open collector |
| Connection voltage SO + SO- | max. 27 V DC |
| Connection current SO + SO- | max. 27 mA |
| Pulse time SO + SO- | 70 ms |
| Communication protocol | NONE |
| Compatibility | MID Directive 2014/32 / EU |
| Accuracy class | B |
| Terminal | pluggable terminal blocks 6,0 mm² |
| Working temperature | -20÷50°C |
| Dimensions | 1 module (18 mm) |
| Assembly | on rail 35 mm |
| Ingress Protection Marking | IP20 |
Connection scheme
Dimensions
